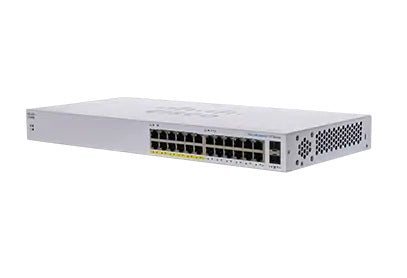

Network Switch Cisco CBS110 Gigabit Ethernet PoE 1U Rack Mount - CBS110-24PP-EU
Network Switch Cisco CBS110 Gigabit Ethernet PoE 1U Rack Mount - CBS110-24PP-EUUnmanaged switch deployments in small and mid-size businesses require reliable connectivity across multiple devices without the complexity of configuration. The Cisco CBS110 delivers essential networking capabilities, making it suitable for a variety of network environments.
With Gigabit Ethernet speeds and Power over Ethernet (PoE) support, this switch simplifies installations of powered devices such as IP cameras and access points. Its rack-mountable design makes integration into existing infrastructure straightforward, providing dependable performance in a compact 1U form factor.
- Type: Unmanaged network switch
- Layer: L2
- Port speed: Gigabit Ethernet (10/100/1000)
- Power over Ethernet: Yes (PoE)
- Form factor: 1U rack mount
Ideal for IT teams and businesses seeking hassle-free, high-speed networking with the ability to power devices directly from the switch.
Available stock: 26
-
Estimated delivery: Oct 18 - Oct 22
Share this product
Couldn't load pickup availability
Infomation
Infomation
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Combo SFP ports quantity | 2 |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5e |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Data transmission | |
| Switching capacity | 48 Gbit/s |
| Forwarding rate | 35.7 Mpps |
| MAC address table | 8192 entries |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Security | |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 400 MHz |
| Internal memory | 64 MB |
| Flash memory | 8 MB |
| Mean time between failures (MTBF) | 340703 h |
| Power | |
| Power supply included | Yes |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 12 |
| Total Power over Ethernet (PoE) budget | 100 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 462.93 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 203 mm |
| Height | 44 mm |
| Weight | 2.98 kg |
| Packaging content | |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Certificates | |
| Compliance certificates | CE |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
