Wireless Access Point TP-Link Omada EAP653 UR 2.4/5 GHz 2976 Mbit/s - EAP653 UR
Wireless Access Point TP-Link Omada EAP653 UR 2.4/5 GHz 2976 Mbit/s - EAP653 URThe TP-Link Omada EAP653 UR is designed for high-density environments requiring robust wireless coverage and performance. Ideal for offices, hotels, or campuses, this access point supports dual-band operation with high throughput.
With data rates up to 2976 Mbit/s and support for multiple authentication protocols including WPA3, the EAP653 UR ensures secure and efficient connectivity. Advanced management features such as SNMP and HTTPS provide IT admins with the tools needed for network monitoring and configuration.
- Wireless bands: 2.4 GHz, 5 GHz
- Maximum throughput: 2976 Mbit/s
- Management protocols: HTTPS, SNMP, SNMPv2, SNMPv3, SSH
- Security protocols: WPA, WPA2, WPA3
- Wired connectivity: 10/100/1000 Mbit/s
This access point is an effective solution for IT departments implementing reliable wireless networks in high-density areas.
Available stock: 1
-
Estimated delivery: Oct 19 - Oct 23
Share this product
Couldn't load pickup availability
Infomation
Infomation
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 2976 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h |
| Cabling technology | 10/100/1000Base-T(X) |
| Number of users | 250 user(s) |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Fit AP mode features | Mesh networking |
| VLAN support | Yes |
| Rate limiting | Yes |
| Flow control support | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Transmitting power (CE) | 27 dBm |
| Transmitting power (FCC) | 22 dBm |
| Security | |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| Management features | |
| Web-based management | Yes |
| Syslog | Yes |
| Firmware upgradeable | Yes |
| Ports & interfaces | |

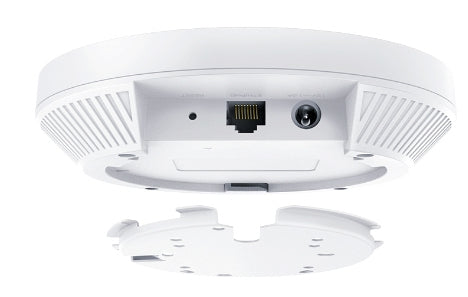

| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 12 V |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna | |
| Antenna type | Internal |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 160 mm |
| Height | 33.6 mm |
| Packaging data | |
| Package type | Box |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
