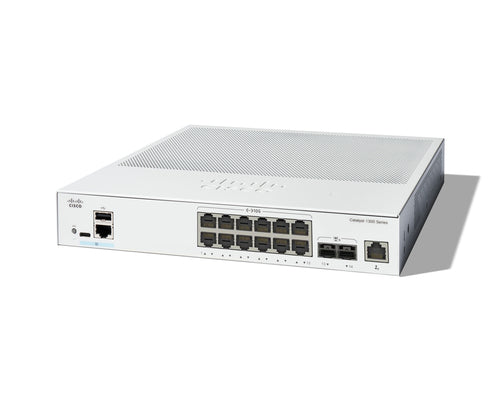

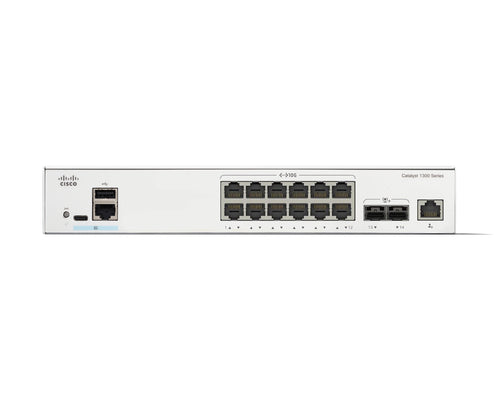

Network Switch Cisco Catalyst C1300-12XT-2X Managed L2/L3 Rack Mounting - C1300-12XT-2X
Network Switch Cisco Catalyst C1300-12XT-2X Managed L2/L3 Rack Mounting - C1300-12XT-2XIT administrators managing network infrastructure will find the Cisco Catalyst C1300-12XT-2X ideal for both Layer 2 and Layer 3 deployments, particularly in rack-mounted server environments.
This managed switch delivers flexibility in performance, supporting various network configurations to adapt to your organizational needs. With its robust capabilities, it enhances operational efficiency and simplifies network management.
- Managed: Yes
- Layer: L2/L3
- Form factor: Rack mountable
Built for IT teams deploying versatile networking solutions in structured environments and data centers.
Available stock: 53
-
Estimated delivery: Nov 08 - Nov 12
Share this product
Couldn't load pickup availability
Infomation
Infomation
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | Y |
| Ports & interfaces | |
| 10G Ethernet (copper) ports quantity | 12 |
| SFP+ module slots quantity | 2 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Cable types supported | Cat5e |
| Port mirroring | Yes |
| Policy-based routing | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| QinQ implementation | Selective QinQ |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Voice VLAN |
| Data transmission | |
| Switching capacity | 280 Gbit/s |
| MAC address table | 16000 entries |
| Number of queues | 8 |
| Static route | Yes |
| Number of static routes | 990 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 3 MB |
| Security | |
| DHCP features | DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 1024 |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2 |
| SSH/SSL support | Yes |
| Authentication | MAC-based authentication, Web-based authentication |
| DoS attack prevention | Yes |
| Authentication type | RADIUS, TACACS+ |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet |
| Design | |
| Rack mounting | Yes |
| Product colour | Grey |
| Reset button | Yes |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 1.4 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 1000 MB |
| Flash memory | 512 MB |
| Plug and Play | Yes |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 220 V |
| AC input frequency | 50/60 Hz |
| Power plug type | Type C |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 300 mm |
| Depth | 268 mm |
| Height | 44 mm |
| Weight | 2.64 kg |
| Packaging data | |
| Package width | 355.9 mm |
| Package depth | 402.3 mm |
| Package height | 103.7 mm |
| Package weight | 3.49 kg |
| Certificates | |
| Certification | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Logistics data | |
| Country of origin | China |
