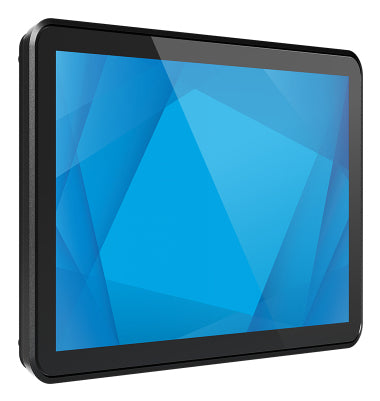

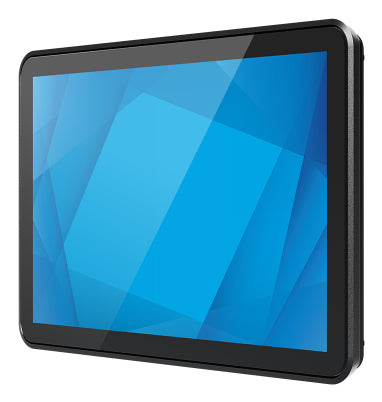

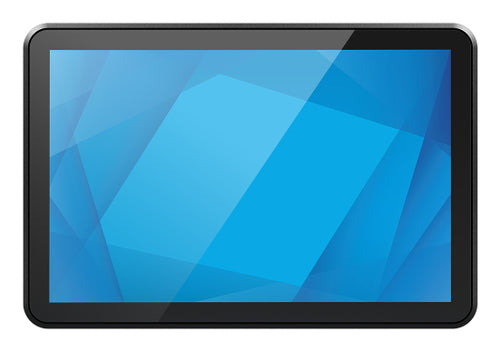

1064L 10-inch Industrial‑Grade
Open Frame Touch Display
Elo's 1064L 10-inch HD open-frame delivers a brilliant, industrial-grade touchscreen monitor designed for easy integration into enclosures. With sleek, narrow borders and a modern form factor, the 1064L is well-suited for industrial controls, HMI, warehouse automation, gaming and more.

Brilliant, optically-bonded
TouchPro™ PCAP display.
The 10-inch 1064L optically-bonded display offers an enhanced, 10-touch
tablet-like experience with the durability, touch performance and premium
optics required for industrial and commercial applications.

Enable power, video and touch
with a single USB‑C cable.

Durable, energy
efficient touchscreen.

Navigate the OSD directly
on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls –
Now you can use the touchscreen or the controls you are used to on the rear
side of the monitor.

Touch thru glass enabled with PCAP.
For installations that require specific IP ratings or protection from vandalism and
harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability. With
touch thru technology, the display can be mounted behind a front layer of glass up
to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.

Designed for easy integration.
Elo’s 10-inch touchscreen monitor can be mounted in landscape, portrait and
upward facing orientations, providing optimal flexibility for integrating in any
counter, kiosk or cabinet design. Whether viewing up close or from a distance, our
optically bonded display offers what you need while maintaining optimal clarity for
the viewing experience.

Computing power that
scales with a single cable.
With the Elo Backpack you get a powerful, commercial-grade Android compute
engine that can easily connect to the display with a single USB-C. Boasting a small
footprint in both size and weight, the Elo Backpack can secure inside any kiosk with
the built-in VESA mount. Scaling Elo’s commercial Android platform across sizes and
form factors has never been easier.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Elo Touch Solutions 1064L

Name: Elo Touch Solutions 1064L
Brand: Elo Touch Solutions
SKU: E971060
Price: 374.28 EUR
Availability: InStock

€374,28 EUR

€374,28 EUR ~~€445,39 EUR~~

Taxes and Shipping calculated at checkout.

Elo Touch Solutions 1064L, Digital signage flat panel, 25.6 cm (10.1"), LED, 1280 x 800 pixels

Vendor: Elo Touch Solutions

Type: Signage Displays

Available stock: 140

★

Free Shipping over $2000

Estimated delivery: Oct 28 - Nov 01

Infomation

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Display
Panel type	TFT-LCD
LED backlight	Yes
Display diagonal	25.6 cm (10.1")
Display technology	LED
Display resolution	1280 x 800 pixels
Display brightness	500 cd/m²
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Number of simultaneous touchpoints	10
Multi-touch	Yes
Native aspect ratio	16:10
Response time	29 ms
Contrast ratio (typical)	800:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Active display area (W x H)	216.96 x 135.6 mm
Number of displays	1
Native refresh rate	60 Hz

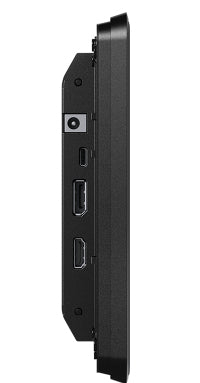

Ports & interfaces
HDMI ports quantity	1
DisplayPorts quantity	1
USB port	Yes
USB ports quantity	1
USB connector type	USB Type-C
Audio
Built-in speaker(s)	No
Design
Product design	Digital signage flat panel
Placement supported	Indoor
Orientation	Horizontal/Vertical
Product colour	Black
Screen shape	Flat

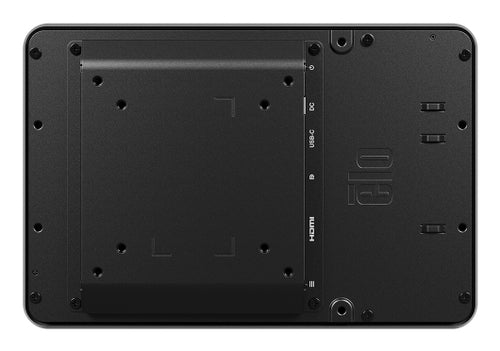

VESA mounting	Yes
Panel mounting interface	75 x 75 mm
Anti-glare screen	Yes
Performance
On Screen Display (OSD)	Yes
Number of OSD languages	8
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Mean time between failures (MTBF)	50000 h
Power
Power consumption (typical)	6.52 W
Power consumption (sleep)	0.45 W
Power consumption (off)	0.25 W
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	11 kWh
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Computer system
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor frequency	2.9 GHz
Processor cores	2
Internal memory	4 GB
Weight & dimensions
Display width	240.4 mm
Display depth	32 mm
Display height	159 mm
Display weight	1.25 kg
Packaging data
Package width	315 mm
Package depth	144 mm
Package height	243 mm
Package weight	2.43 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95%
Logistics data
Quantity per pack	1 pc(s)
Network
Ethernet LAN	No
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), CB, UKCA, CCC, China Compulsory Certification (CCC), VCCI, Norma Oficial Mexicana (NOM)
Other features
Aspect ratio	16:10
