DICOM Medical Grade Touchscreen Monitors
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

Easy to Clean
Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.

DICOM 14 - Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.

Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.

Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.

Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.

Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.

Configurability Made Easy

Flexible Mounting
Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.

Privacy Matters
Optional privacy filters offer an additional safeguard when reviewing private health information or sensitive administrative data.

Ergonomic
Optional handles can be added to easily move or rotate the display to a comfortable orientation.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

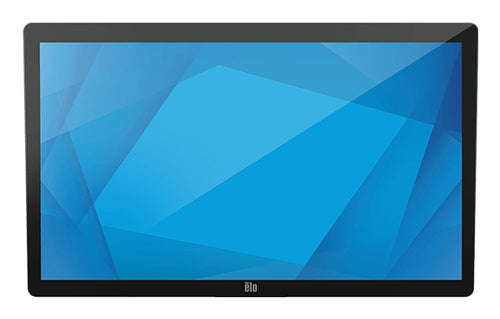

Elo Touch Solutions 2703LM computer monitor

Name: Elo Touch Solutions 2703LM computer monitor
Brand: Elo Touch Solutions
SKU: E381654
Price: 883.51 EUR
Availability: InStock

€883,51 EUR

€883,51 EUR ~~€971,86 EUR~~

Taxes and Shipping calculated at checkout.

Elo Touch Solutions 2703LM, 68.6 cm (27\"), 1920 x 1080 pixels, Full HD, LCD, 14 ms, Black

Vendor: Elo Touch Solutions

Type: Computer Monitors

Available stock: 5
🚨 Hot Demand! Only 5 left — grab yours before it's gone! 💥

Free Shipping over $2000

Estimated delivery: Nov 04 - Nov 08

Infomation

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Display
Display diagonal	68.6 cm (27")
Display resolution	1920 x 1080 pixels
HD type	Full HD
Native aspect ratio	16:9
Display technology	LCD
Panel type	TFT
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Number of simultaneous touchpoints	10
Display brightness	300 cd/m²
Response time	14 ms
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 500, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Contrast ratio (typical)	1000:1
Maximum refresh rate	70 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Horizontal scan range	30 - 82 kHz
Vertical scan range	50 - 75 Hz
Viewable size, horizontal	59.8 cm
Viewable size, vertical	33.6 cm
Display diagonal (metric)	68.6 cm
Multimedia
RMS rated power	2 W
Built-in speaker(s)	Yes
Built-in camera	No
Design
Market positioning	Medical
Product colour	Black
Ports & interfaces
USB version	2.0
VGA (D-Sub) ports quantity	1
HDMI	Yes
HDMI ports quantity	1
Headphone connectivity	3.5 mm
DC-in jack	Yes
Ergonomics
VESA mounting	Yes
Wall mountable	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages	10
LED indicators	Power
Power
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	21 kWh
Power consumption (typical)	17.37 W
Power consumption (standby)	1 W
Power consumption (max)	22.41 W
Power consumption (off)	0.24 W
AC input voltage	100 - 240 V
Energy efficiency scale	A to G
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 95%
Weight & dimensions
Width (without stand)	394.1 mm
Depth (without stand)	44.9 mm
Height (without stand)	647.6 mm
Weight (without stand)	7.13 kg
Packaging data
Package width	520 mm
Package depth	187 mm
Package height	770 mm
Package weight	10.4 kg
Packaging content
Cables included	HDMI, USB, VGA
Sustainability
Sustainability compliance	Yes
Other features
International Protection (IP) code	IP54
Display viewable area (HxV)	597.88 x 336.31 mm
USB connector type	Micro-USB, USB Type-A, USB Type-B
Active display area (W x H)	597.88 x 336.31 mm
USB 2.0 ports quantity	1
USB ports quantity	6
Compliance certificates	BIS, BSMI, CB, CE, China Compulsory Certification (CCC), China RoHS, EAC, Federal Communications Commission (FCC), KCC, RCM, REACH, RoHS, UKCA, VCCI, WEEE, cUL
Mean time between failures (MTBF)	50000 h
Certification	UL: AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012/IEC 60601-1 Ed. 3.1 cUL: (CAN/CSA-C22.2 NO. 60601-1:14 /IEC60601-1 Ed. 3.1 CB: IEC 60601-1:2005+A1:2012 (Ed. 3.1) CE: IEC 60601-1-2:2014 (Ed. 4) Risk Management: ISO 14971:2007 + EN ISO 14971:2012 Usability: IEC 60601-1-6:2010+A1:2013 (Ed. 3.1), IEC 62366:2007+A1:2014 (Ed. 1.1)
