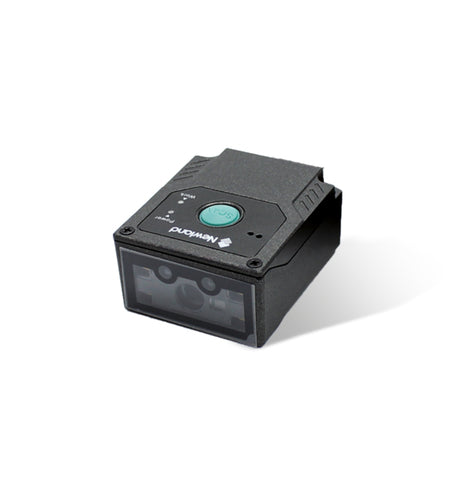

Bar Code Reader Newland FM430 Barracuda 1D/2D CMOS - NLS-FM430L-U
Bar Code Reader Newland FM430 Barracuda 1D/2D CMOS - NLS-FM430L-UDeploy the Newland FM430 Barracuda in retail or warehouse environments where fast, accurate scanning of various 1D and 2D barcodes is critical.
The FM430 integrates a CMOS sensor optimized for high-speed reading, enhancing operational efficiency. Its wide range of supported codes makes it versatile for multiple applications.
- Types supported: 1D/2D barcodes
- Sensor: CMOS
- Temperature range: -55-55°
Ideal for IT admins implementing fixed barcode solutions in diverse settings.
Available stock: 39
-
Estimated delivery: Oct 31 - Nov 04
Share this product
Couldn't load pickup availability
Infomation
Infomation
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Scanning | |
|---|---|
| Type | Fixed bar code reader |
| Scanner type | 1D/2D |
| Sensor type | CMOS |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, ITF-14, Industrial 2 of 5, MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Tilt reading angle | -55 - 55° |
| Pitch reading angle | -55 - 55° |
| Yaw reading angle | 0 - 360° |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232 |
| Performance | |
| International Protection (IP) code | IP54 |
| LED indicators | Yes |
| Buzzer | Yes |
| Product colour | Black |
| Certification | FCC B, CE EMC B, IEC60825, IEC62471, KC |
| Power | |
| Power source type | USB |
| Input voltage | 5 V |
| Power consumption | 276.8 mA |
| Weight & dimensions | |
| Width | 41.5 mm |
| Depth | 49.5 mm |
| Height | 24.3 mm |
| Weight | 75 g |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
