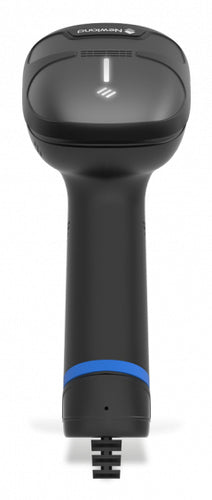

Newland HR33 Marlin
Newland HR33 MarlinAvailable stock: 48
-
Estimated delivery: Oct 30 - Nov 03
Share this product
Couldn't load pickup availability
Infomation
Infomation
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | CMOS |
| Linear (1D) barcodes supported | AIM-128, China Post, Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 Composite, GS1 DataBar, GS1-128 (UCC/EAN-128), ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Plessey, Standard 2 of 5, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Chinese Sensible Code, Code 1, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| OCR types supported | China Travel Permit OCR, Chinese ID Card, Passport OCR |
| Laser guide | Yes |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Horizontal field of view | 48° |
| Vertical field of view | 30° |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | 0 - 60° |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232, USB |
| USB 2.0 ports quantity | 1 |
| Performance | |
| International Protection (IP) code | IP52 |
| LED indicators | Yes |
| Buzzer | Yes |
| Print contrast | 15% |
| Product colour | Black |
| Vibration function | Yes |
| Certification | IEC62471, IEC60825 |
| Power | |
| Power source type | USB |
| Power consumption | 281 mA |
| Weight & dimensions | |
| Width | 95 mm |
| Depth | 68 mm |
| Height | 166 mm |
| Weight | 140 g |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Drop resistance | 1.5 m |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
