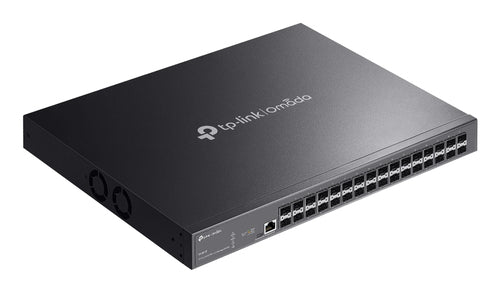

Network Switch TP-Link Omada 32-Port 10GE SFP+ L2+ Rack Mount
Network Switch TP-Link Omada 32-Port 10GE SFP+ L2+ Rack MountBusinesses that require fast, reliable switching capabilities for high-performance networks will benefit from the TP-Link Omada 32-Port Managed Switch. With a robust design, it is perfect for enterprise-level deployments needing stable and efficient network management.
This L2+ managed switch delivers high-speed data transfer, ensuring seamless communication across connected devices. The 10GE SFP+ ports offer excellent scalability, while features tailored for efficient management make it easy to integrate into existing infrastructures.
- Ports: 32 Ports supporting 10GE SFP+
- Management Layer: Layer 2+ Managed Switch
- Design: Rack Mountable
- Features: Efficient network management features
Ideal for IT teams needing reliable switching capabilities in enterprise environments and high-performance networks.
Available stock: 1
-
Estimated delivery: Nov 01 - Nov 05
Share this product
Couldn't load pickup availability
Infomation
Infomation
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| Installed SFP+ modules quantity | 32 |
| Console port | RJ-45/Micro-USB |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3x |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| VLAN support | Yes |
| Virtual LAN features | Protocol-based VLAN, SSID-based VLAN assignment, Tagged VLAN, VLAN mapping, Voice VLAN |
| Number of VLANs | 30 |
| Data transmission | |
| Switching capacity | 640 Gbit/s |
| Forwarding rate | 240 Mpps |
| MAC address table | 32000 entries |
| Number of queues | 8 |
| Static route | Yes |
| Number of static routes | 128 |
| Number of IP interfaces | 128 |
| Jumbo frames support | Yes |
| Jumbo frames | 9 |
| Packet buffer memory | 24 MB |
| Security | |
| DHCP features | DHCP relay, DHCP server, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Password protection | Yes |
| Authentication type | AAA, TACACS+ |
| Queue scheduling algorithms | Priority queuing (PQ), SP, Weighted Round Robin (WRR) |
| Multicast features | |
| Multicast support | Yes |
| Number of multicast groups filtered | 4000 |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, ICMPv6, IPv6 TFTP |
| IP Source Guard (IPSG) | Yes |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Redundant fans support | Yes |
| Number of fans | 2 fan(s) |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 49.4 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | 40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Packaging content | |
| Cables included | Power |
| Quick start guide | Yes |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
