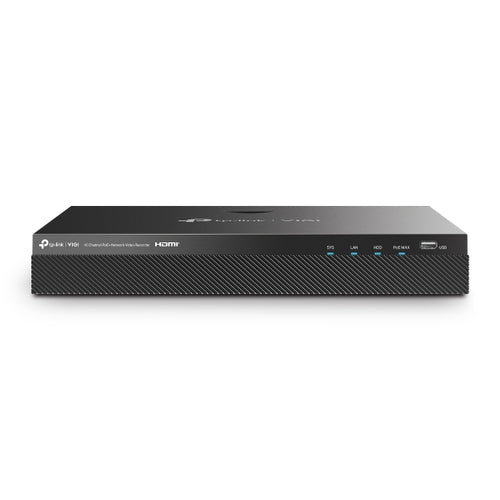

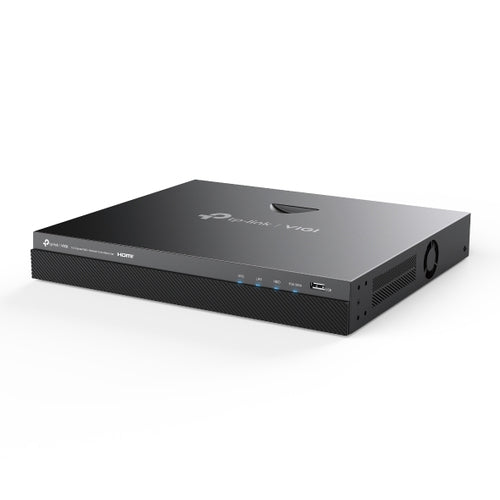

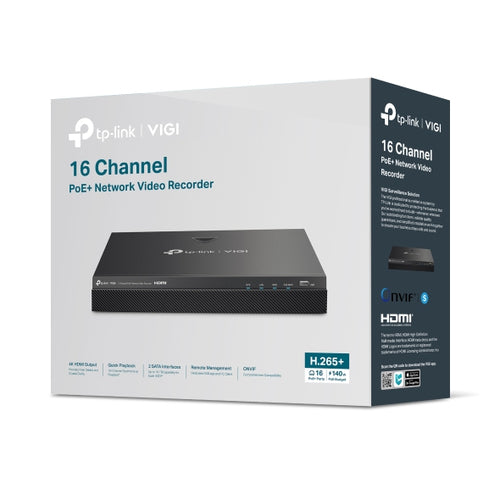

Network Video Recorder TP-Link VIGI NVR2016H 16-Channel 4K HDMI
Network Video Recorder TP-Link VIGI NVR2016H 16-Channel 4K HDMIBusinesses and homes that require robust surveillance solutions will find the TP-Link VIGI NVR2016H indispensable for maintaining security across multiple locations. This network video recorder supports 16 channels, ensuring comprehensive coverage and oversight.
Capable of delivering stunning 4K resolution, this device adapts to various monitoring scenarios through its multiple output and resolution options. You can tailor your surveillance experience with specific needs in mind while enjoying high-definition clarity.
- Model: TP-Link VIGI NVR2016H
- Channels: 16 channels
- Max Resolution: 3840 x 2160 pixels (4K)
- Supported Resolutions: 720p, 1080p
- HDMI Output: Various resolutions including 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz
- Audio Codec: G.711 A-law, G.711 μ-law, G.726
Built for enterprises and residential environments needing multi-location monitoring with high-definition surveillance capabilities.
Available stock: 6
-
Estimated delivery: Oct 28 - Nov 01
Share this product
Couldn't load pickup availability
Infomation
Infomation
No information available.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Performance | |
|---|---|
| Video input channels | 16 channels |
| Number of simultaneously playbacked channels | 16 channels |
| Video recording modes | 720p, 1080p |
| Maximum resolution | 3840 x 2160 pixels |
| Supported resolutions | HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz |
| Video motion detection | Yes |
| Audio formats supported | G.711 A-law, G.711 μ-law, G.726 |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Playback modes | Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop |
| Playback controls | Yes |
| Maximum frame rate | 30 fps |
| Input bandwidth | 80 Mbit/s |
| Output bandwidth | 60 Mbit/s |
| Recording modes | Manual, Schedule |
| Wireless LAN features | |
| Wi-Fi | No |
| Hard drive | |
| HDD capacity | 0 GB |
| Number of HDDs supported | 2 |
| Maximum storage capacity | 10 TB |
| HDD interface | SATA |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) ports quantity | 16 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| eSATA ports quantity | 1 |
| Internal SATA ports quantity | 2 |
| eSATA | Yes |
| Line-in | Yes |
| Audio output | 1 |
| DC-in jack | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | UPnP (Plug and Play), NTP (Network Timing) |
| Features | |
| Reset button | Yes |
| Product colour | Black |
| Certification | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
| Power | |
| Power consumption (max) | 40 W |
| Output current | 2.43 A |
| Output voltage | 53.5 V |
| Total Power over Ethernet (PoE) budget | 140 W |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Width | 330 mm |
| Depth | 285 mm |
| Height | 45 mm |
| Weight | 2.1 kg |
| Package weight | 4.1 kg |
| Packaging content | |
| Cables included | AC |
| AC adapter included | Yes |
| Quick installation guide | Yes |
