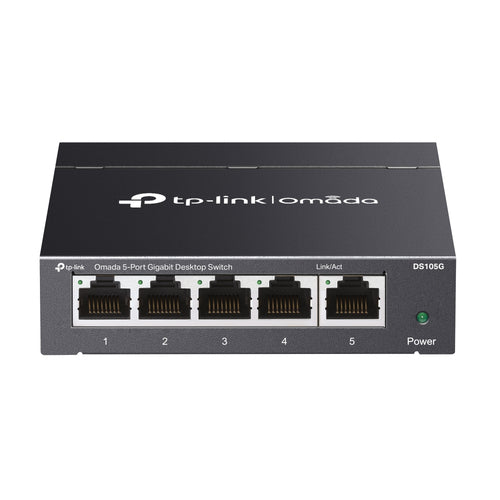

Network Switch TP-Link Omada DS105G 5-Port Gigabit Unmanaged
Network Switch TP-Link Omada DS105G 5-Port Gigabit UnmanagedSmall businesses and home offices that require a straightforward solution to expand their network will find the TP-Link Omada DS105G unmanaged switch perfectly suited for their needs. With a 5-port design, this switch delivers high-speed connections for all your essential devices, ensuring smooth and efficient operations.
Built for reliability, the DS105G provides seamless connectivity and efficient data transfer, making it an excellent choice for both new setups and enhancements to existing networks. Its simplicity allows users to easily manage their connections without intricate configurations.
- Type: Unmanaged Switch
- Ports: 5 Gigabit Ethernet Ports (10/100/1000)
Ideal for IT administrators and small business owners looking to enhance their network infrastructure without the need for complex management.
Available stock: 1
-
Estimated delivery: Nov 02 - Nov 06
Share this product
Couldn't load pickup availability
Infomation
Infomation
No information available.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto-negotiation | Yes |
| Data transmission | |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.4 Mpps |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 16 |
| Packet buffer memory | 1 MB |
| Security | |
| Loop protection | Yes |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Steel |
| Reset button | Yes |
| LED indicators | Activity, Link, Power |
| Performance | |
| Fanless | Yes |
| Power | |
| Power source | AC/DC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 5 V |
| Input current | 0.6 A |
| Power consumption (max) | 3.1 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 10.54 BTU/h |
| Weight & dimensions | |
| Width | 99.8 mm |
| Depth | 97.8 mm |
| Height | 25 mm |
| Packaging content | |
| Cables included | Power |
| User guide | Yes |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
