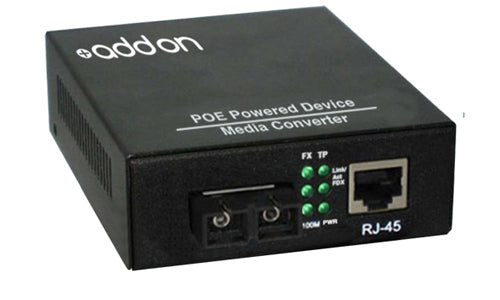

AddOn Networks 100BTX-100BFX network media converter

Information

ADD-FMCPD-FX-SC is a 10/100Base-TX to 100Base-FX media converter, which converts 100Base Copper to 100Base-FX via a 1310nm single-mode fiber (SMF) SC Connector, which allows reach distance up to 2km. Complied with IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 UTP cable (cable length up to 100meters / 330feets). The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection, LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.

AddOn - Network Upgrade Media Converters and Network Interface Cards are 100% compliant for all of our networking needs. ADD-FMCPD-FX-SC provides a cost effective conversion from 100Base Copper to 100Base-FX fiber, while extending your network reach beyond the 100m reach limitation of copper.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

AddOn Networks 100BTX-100BFX network media converter

Name: AddOn Networks 100BTX-100BFX network media converter
Brand: AddOn Networks
SKU: ADD-FMCPD-FX-SC
Price: 160.56 CAD
Availability: InStock

$160.56 CAD

$160.56 CAD ~~$215.15 CAD~~

Taxes and Shipping calculated at checkout.

AddOn Networks 100BTX-100BFX, 100 Mbit/s, 100Base-TX, 100Base-FX, IEEE 802.3af, Fast Ethernet, 100 Mbit/s

Vendor: AddOn Networks

Type: Network Media Converters

Available stock: 1
🚨 Hot Demand! Only 1 left — grab yours before it's gone! 💥

Free Shipping over $2000

Estimated delivery: Nov 06 - Nov 10

Information

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Network
Maximum data transfer rate	100 Mbit/s
Converter input interface	100Base-TX
Converter output interface	100Base-FX
Networking standards	IEEE 802.3af
Ethernet interface type	Fast Ethernet
Ethernet LAN data rates	100 Mbit/s
Performance
Maximum transfer distance	2000 m
Wavelength	1310 nm
Features
Internal	No
LED indicators	Link, Power, Status
Product colour	Black
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC
Power
Input current	0.15 A
Output voltage	48 V
Output current	0.54 A
Power consumption (typical)	25 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 90%
Other features
Operating temperature (T-T)	32 - 122 °F
Transmission distance (max)	2 km
