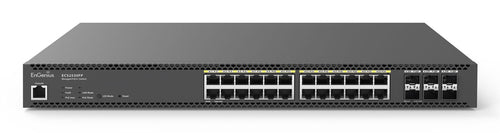

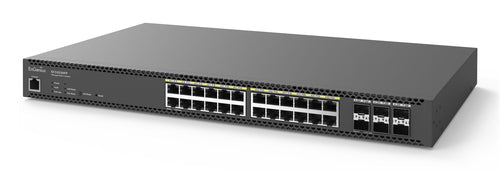

EnGenius ECS2530FP network switch
EnGenius ECS2530FP network switchRegular price
$955.72 CAD
Sale price
$955.72 CAD
Regular price
$1,194.65 CAD
Taxes and Shipping calculated at checkout.
EnGenius Cloud Managed Switch 24-port Multi-GbE PoE.af/at/bt 740W 4xSFP L2 19i, Managed, L2+, 2.5G Ethernet (100/1000/2500), Power over Ethernet (PoE), Rack mounting
Available stock: 4
-
Estimated delivery: Oct 28 - Nov 01
Share this product
Couldn't load pickup availability
Information
Information
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity | 6 |
| Console port | RJ-45 |
| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.1x, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Voice VLAN |
| Data transmission | |
| Switching capacity | 240 Gbit/s |
| MAC address table | 16000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Security | |
| DHCP features | DHCP relay, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| Multicast features | |
| Multicast support | Yes |
| Number of multicast groups filtered | 256 |
| Multicast Listener Discovery (MLD) snooping | Y |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| Performance | |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 740 W |
| Other features | |
| Warranty period | 5 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 260 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Weight | 4 kg |
| Packaging content | |
| Cables included | AC, LAN (RJ-45) |
| Rack mount kit | Yes |
| Packaging data | |
| Package width | 535 mm |
| Package depth | 349 mm |
| Package height | 104 mm |
| Package weight | 4.58 kg |
| Logistics data | |
| Master (outer) case net weight | 13.7 kg |
| Master (outer) case width | 324 mm |
| Master (outer) case length | 564 mm |
| Master (outer) case height | 389 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 14.7 kg |
| Products per master (outer) case | 3 pc(s) |
