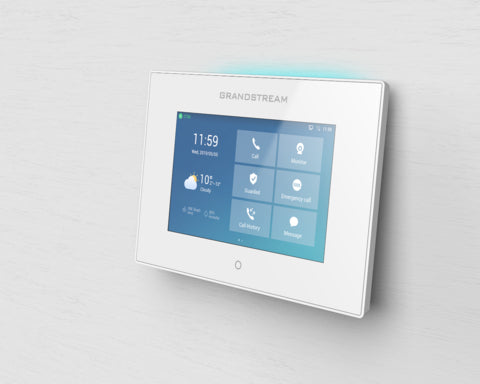

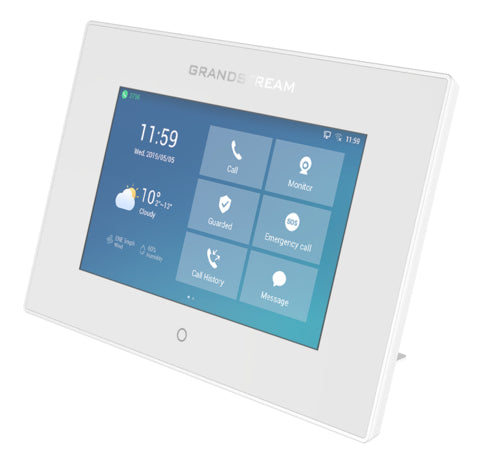

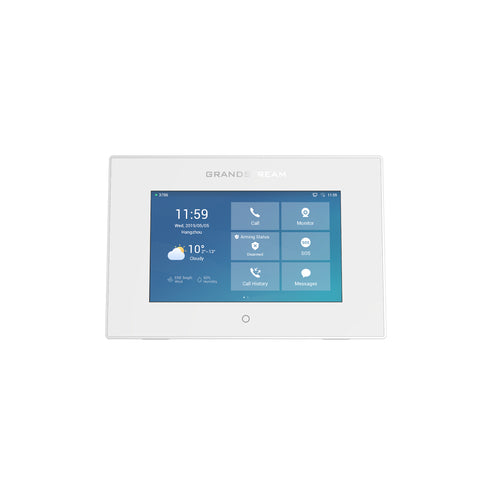

Grandstream Networks GSC3570 video intercom system
Grandstream Networks GSC3570 video intercom system
Available stock: 2
-
Estimated delivery: Oct 18 - Oct 22
Share this product
Couldn't load pickup availability
Infomation
Infomation
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Features | |
|---|---|
| Connectivity technology | Wired & Wireless |
| Colour | Yes |
| Speakerphone | Yes |
| Frequency band | 2.4 & 5 |
| Built-in microphone | Yes |
| Display | |
| Display diagonal | 17.8 cm (7") |
| Display technology | TFT |
| Display resolution | 1024 x 600 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Video formats supported | H.264, H.264 BP |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Voice codecs | AGC, AJB, CNG, G.711, G.722, G.726-32, G.729A, G.729B, OPUS, PLC, VAD, iLBC |
| Design | |
| Product colour | White |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Portuguese, Russian |
| Placement supported | Vertical |
| Storage | |
| Memory card slot | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Power over Ethernet (PoE) | Yes |
| Supported network protocols | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LDAP, 802.1x, TLS, SRTP, IPv6 |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af |
| Software | |
| Operating system installed | Linux |
| Power | |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 224.5 mm |
| Depth | 149.5 mm |
| Height | 36.5 mm |
| Weight | 517 g |
| Packaging data | |
| Indoor unit included | Yes |
| Outdoor unit included | No |
| Package width | 265 mm |
| Package depth | 180 mm |
| Package height | 54 mm |
| Package weight | 880 g |
| Technical details | |
| Certification | FCC, CE, RCM, IC |
| Logistics data | |
| Harmonized System (HS) code | 85176920 |
