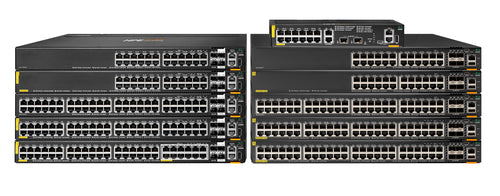

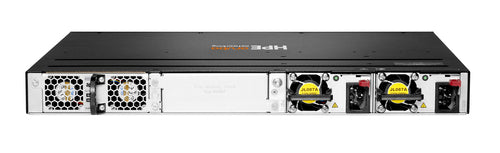

Network Switch HPE Aruba CX 6200M 36G Class6 PoE 4x SFP+ Rack Mount - R8Q71A
Network Switch HPE Aruba CX 6200M 36G Class6 PoE 4x SFP+ Rack Mount - R8Q71AThe HPE Aruba CX 6200M is engineered for network deployments requiring a managed Layer 3 switch with PoE support. Ideal for enterprise environments, it seamlessly delivers Gigabit Ethernet connectivity.
This switch features a robust power-over-Ethernet capability and supports 4 SFP+ uplinks for flexible expansion. Designed for rack mounting, the CX 6200M helps streamline network operations, making it suitable for high-density applications.
- Model: 6200M
- Ports: 36G
- Uplinks: 4x SFP+
- Layer: L3
- Gigabit Ethernet: 10/100/1000
- Power over Ethernet: Class6 PoE
- Form factor: Rack mounting
Designed for IT admins in data centers and large office spaces needing managed Gigabit connectivity with PoE capabilities.
Available stock: 38
-
Estimated delivery: Oct 22 - Oct 26
Share this product
Couldn't load pickup availability
Information
Information
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Data transmission | |
|---|---|
| Switching capacity | 272 Gbit/s |
| Throughput | 130.9 Mpps |
| Design | |
| Stackable | Yes |
| Performance | |
| Physical stacking (units) | 8 |
| Built-in processor | Yes |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Power | |
| Power consumption note | 76W at 230 VAC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 1440 W |
| Other features | |
| Latency | 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec |
| Memory and processor | CPU: Quad-core Arm Cortex-A72 at 1.8 GHz Memory: 8 GB DDR4 Flash: 16 GB eMMC |
| I/O ports | 36 x 10/100/1000BASE-T Class 6 PoE ports, supporting up to 60W per port 12 x HPE Smart Rate 1/2.5/5G BaseT Class 6 PoE ports supporting up to 60W per port 4 x 1/10G SFP ports (2 x LRM; 2 x LRM/MACSec 256) Supports PoE standards IEEE 802.3af, 802.3at, 802.3bt (up to 60W) 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM 1 x RJ-45 console port |
| Performance management | Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software |
| Weight (imperial) | 6.01 kg (13.2 lbs) |
| Dimensions (W x D x H) (imperial) | 43.9 x 442.5 x 383.8 mm (1.73 x 17.4 x 15.1") |
| Fan | Fixed fans |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
| Width | 43.9 mm |
| Depth | 442.5 mm |
| Height | 383.8 mm |
| Weight | 6.01 kg |
