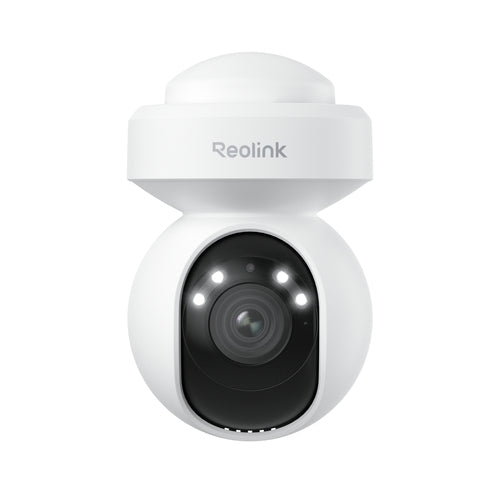

Reolink E Series E540
Reolink E Series E540Available stock: 104
-
Estimated delivery: Oct 25 - Oct 29
Share this product
Couldn't load pickup availability
Information
Information
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired & Wireless |
| PTZ control | Yes |
| Preset points | Yes |
| Virtual assistant | Google Assistant |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Built-in light | Yes |
| Colour temperature | 6500 K |
| Antenna type | Internal |
| Operating frequency | 2400 - 5000 MHz |
| Design | |
| Form factor | Dome |

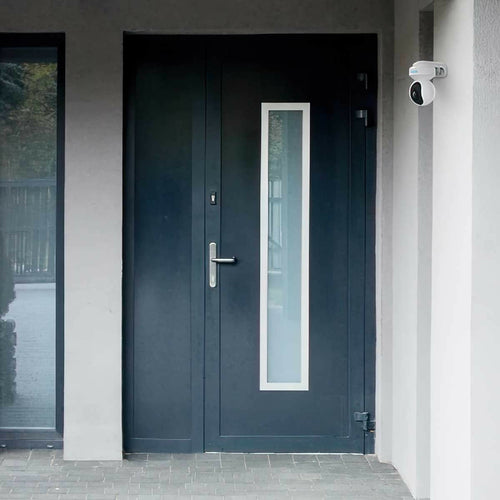

| Mounting type | Wall |
| Product colour | White |
| LED indicators | Yes |

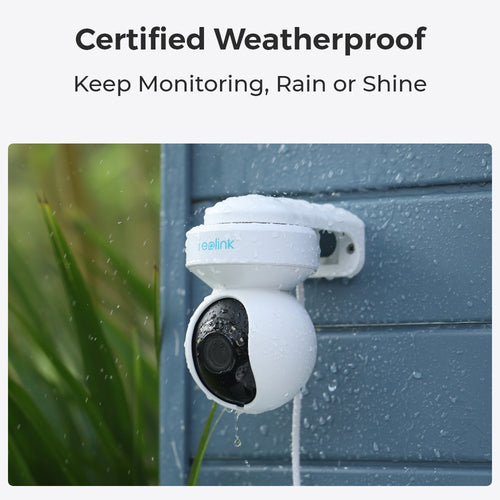

| International Protection (IP) code | IP65 |
| Weatherproof | Yes |
| Camera | |
| Lens viewing angle, horizontal | 48 - 90° |
| Lens viewing angle, vertical | 37 - 68° |
| Tilt angle range | 0 - 50° |
| Pan range | 0 - 355° |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Optical zoom | 3x |
| Number of lenses | 1 |
| Focal length range | 2.8 - 8 mm |
| Maximum aperture number | 1.6 |
| Night vision | |

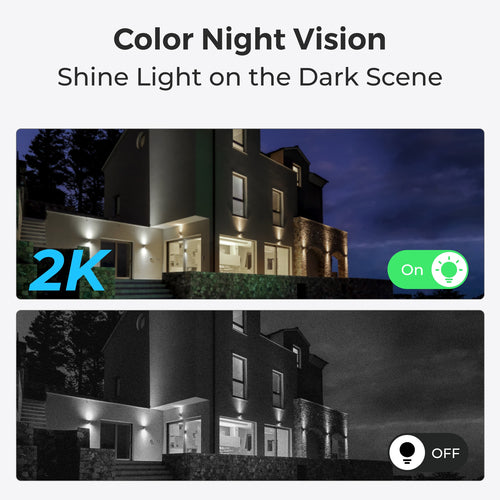

| Night vision | Yes |
| Night vision distance | 12 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 2560 x 1920 pixels |
| Total megapixels | 5 MP |
| Video compression formats | H.264 |
| Video recording | Yes |
| Frame rate | 20 fps |

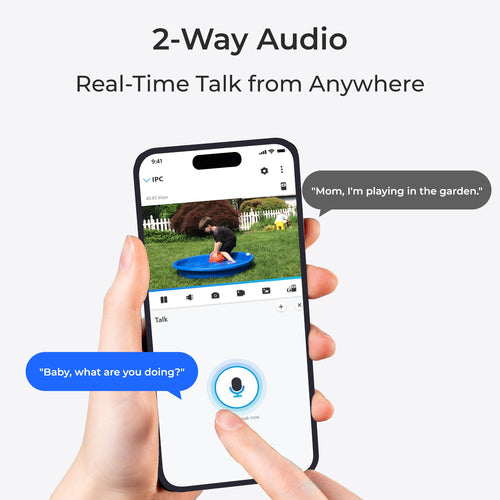

| Audio | |
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Built-in microphone | Yes |
| Bit rate range | 64 - 8192 Kbit/s |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Supported network protocols | HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | No |
| Number of users | 20 user(s) |
| User access level | Administrator, User |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Security | |
| Video motion detection | Yes |
| Security algorithms | WPA, WPA2 |

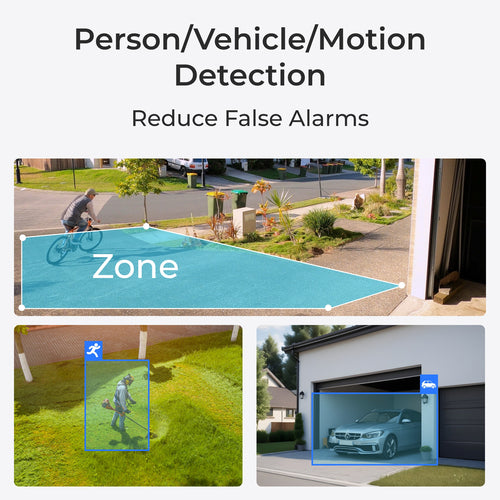

| Intelligent Video Surveillance (IVS) system features | Human detection, Pet detection, Vehicle detection |
| Management features | |
| Reset button | Yes |
| Power | |
| Power source type | DC |
| Power consumption (max) | 12 W |
| DC output voltage | 12 |
| DC output current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
| Weight & dimensions | |
| Height | 120 mm |
| Diameter | 9 cm |
| Weight | 458 g |
| Packaging data | |
| Package width | 159 mm |
| Package depth | 217 mm |
| Package height | 125 mm |
| Package weight | 1 kg |
| Packaging content | |
| Number of cameras | 1 |
| Cables included | LAN (RJ-45) |
| Mounting kit | Yes |
| Screws included | Yes |
