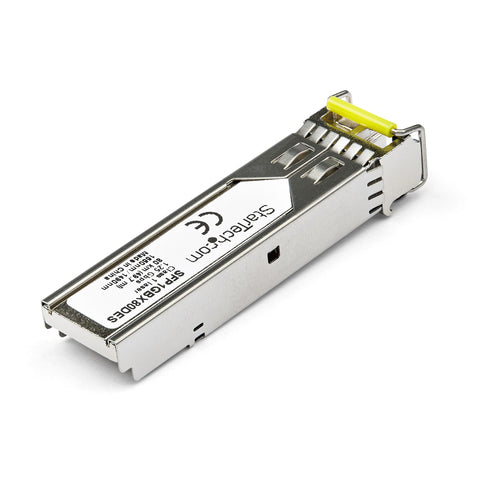

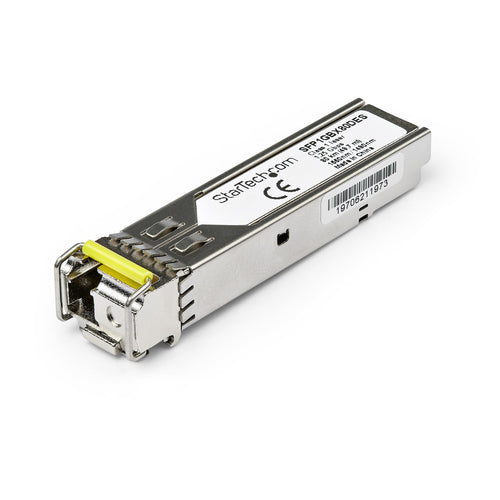

StarTech.com SFP1GBX80DES network transceiver module

Information

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 80 km (49.7 mi) | Lifetime Warranty

The SFP1GBX80DES is a Dell EMC SFP-1G-BX80-D compatible downstream fiber SFP transceiver which pairs with StarTech.com's SFP1GBX80UES. They are designed, programmed and tested to work with 1000BASE-BX80 compatible Dell EMC switches and routers. The SFP transceiver module supports a maximum distance of up to 80 km (49.7 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 1550nmTX/1490nmRX
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 80 km (49.7 mi)
• Power Consumption: Low power consumption
• DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

StarTech.com SFP1GBX80DES network transceiver module

Name: StarTech.com SFP1GBX80DES network transceiver module
Brand: StarTech.com
SKU: SFP1GBX80DES
Price: 29.05 CAD
Availability: InStock

$29.05 CAD

$29.05 CAD ~~$34.57 CAD~~

Taxes and Shipping calculated at checkout.

StarTech.com Dell EMC SFP-1G-BX80-D Compatible SFP Module - 1000BASE-BX-D - 1 GbE Gigabit Ethernet BiDi Fiber (SMF), Fiber optic, 1000 Mbit/s, SFP, LC, 80000 m, 1550 nm

Vendor: StarTech.com

Type: Network Transceiver Modules

Available stock: 48

★

Free Shipping over $2000

Estimated delivery: Oct 26 - Oct 30

Information

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Performance
SFP transceiver type	Fiber optic
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	Yes
Multi-mode fiber (MMF) supported	No
Fiber optic connector	LC
Maximum transfer distance	80000 m
Tx wavelength (max)	1550 nm
Rx wavelength (max)	1490 nm
Digital Diagnostics Monitoring (DDM)	Yes
Features
Product colour	Silver
Hot-swap	Yes
Mean time between failures (MTBF)	3713222 h
Brand compatibility	Dell
Compatible products	SFP-1G-BX80-D
Certificates
Compliance certificates	RoHS
Certification	CE, FCC, UL, REACH
Weight & dimensions
Width	58.4 mm
Depth	13.9 mm
Height	12.6 mm
Weight	30 g

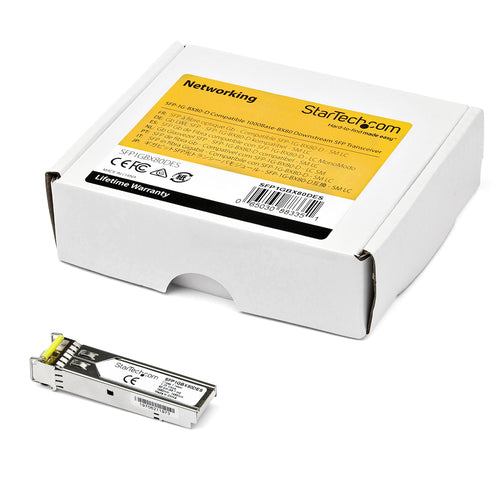

Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	90 mm
Package depth	115 mm
Package height	31 mm
Package weight	50 g
Logistics data
Master (outer) case width	90 mm
Master (outer) case length	115 mm
Harmonized System (HS) code	85369010
Master (outer) case height	31 mm
Products per master (outer) case	1 pc(s)
