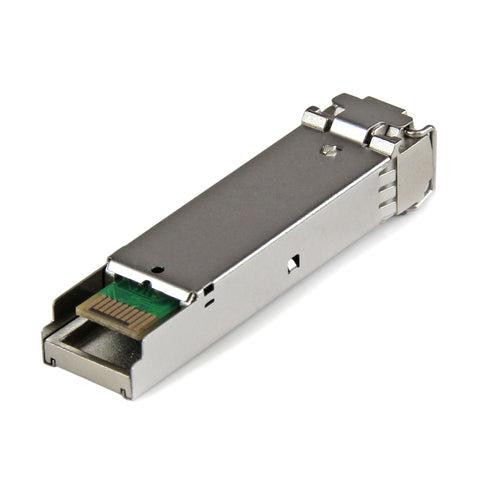

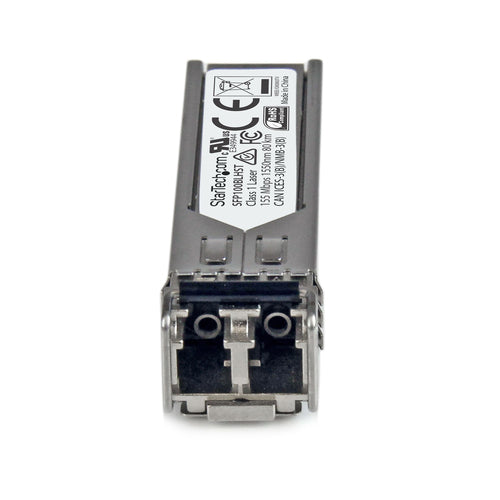

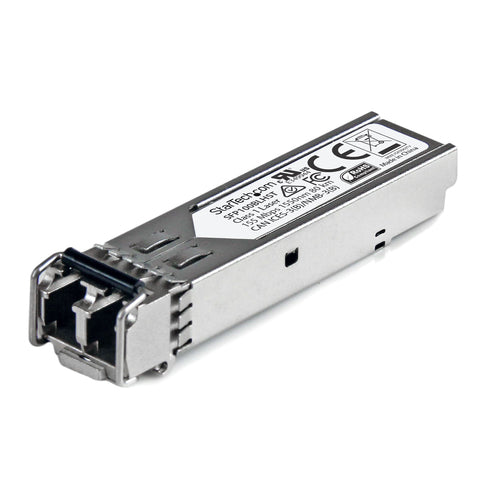

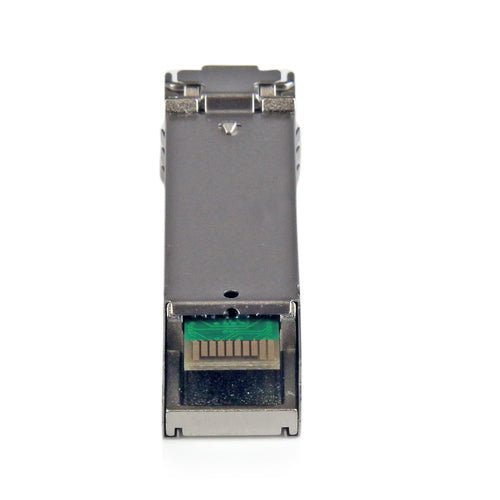

SFP Transceiver Module StarTech.com SFP100BLHST 100BASE-LH 80km 100MbE LC
SFP Transceiver Module StarTech.com SFP100BLHST 100BASE-LH 80km 100MbE LCBusinesses seeking to expand their network capabilities will benefit from the StarTech.com SFP100BLHST transceiver module, which provides reliable long-distance data transmission. This unit is ideal for extending communication across single mode fiber applications.
With a range of up to 80km and data rates of 100MbE, this MSA-compliant SFP transceiver ensures efficient performance for enterprise-grade fiber optic networks. You'll achieve seamless data flow with minimal latency, making it a great choice for high-bandwidth environments.
- Type: SFP Transceiver Module
- Standard: 100BASE-LH
- Distance: Up to 80km
- Wavelength: 1550nm
- Data Rate: 100MbE
- Connector: LC
- Compatibility: MSA Compliant
Designed for IT teams deploying long-distance fiber optic solutions to enhance their network infrastructure across business operations.
Available stock: 143
-
Estimated delivery: Oct 20 - Oct 24
Share this product
Couldn't load pickup availability
Information
Information
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LH |
| Maximum transfer distance | 80000 m |
| Wavelength | 1550 nm |
| Networking standards | IEEE 802.3u |
| Duplex system | Full, Half |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Wavelength-division multiplexing (WDM) | No |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Yes |
| Power | |
| Power consumption (typical) | 1 W |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC, UR |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 13.9 mm |
| Depth | 58.4 mm |
| Height | 12.6 mm |
| Weight | 20 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 90 mm |
| Package depth | 120 mm |
| Package height | 30 mm |
| Package weight | 48 g |
| Logistics data | |
| Master (outer) case width | 310 mm |
| Master (outer) case length | 400 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 315 mm |
| Products per master (outer) case | 80 pc(s) |
