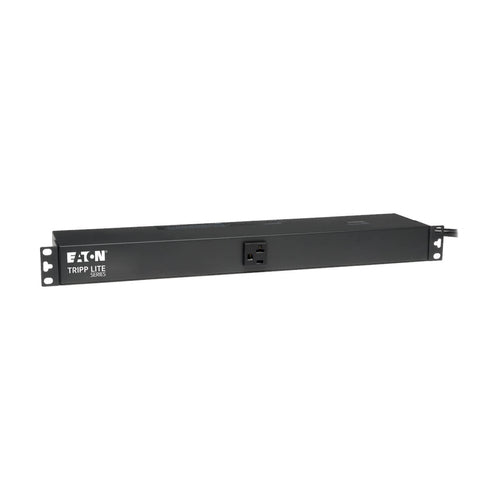

Tripp Lite PDU1220T power distribution unit (PDU)

Information

Tripp Lite's PDU1220T AC power distribution unit offers 20 amp, 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 12 rear-facing outlets and one front-facing measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes PDU1220T ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 12 rear-facing NEMA5-20R outlets, 1 front-facing NEMA5-20R outlet, NEMAL5-20P twist lock plug, 15 ft. AC power cord, 20 amp circuit breaker, grounding lug and rugged all-metal case design.
- 2.4kW 20A 120V single phase Basic Power Distribution Unit / PDU
- 1U horizontal 19 inch rackmount form factor installs in one rack space

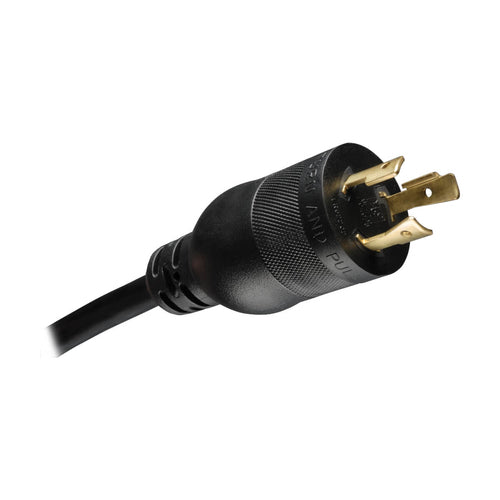

- NEMA L5-20P 20A 120v input plug with 15 ft. / 4.5m line cord

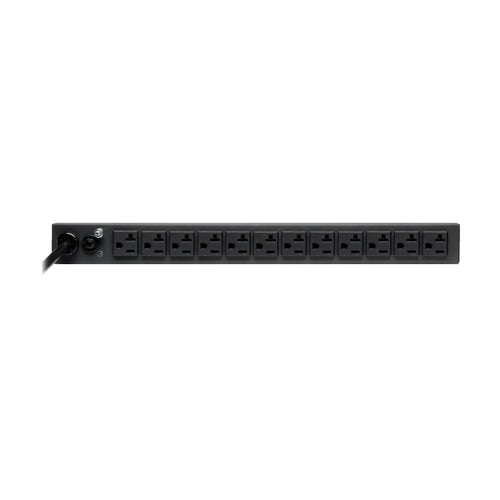

- 13 NEMA 5-15/20R outlets (1 front / 12 rear)
- Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wallmount and under-counter mounting
- Mounting ears are reversible for front or rear facing rackmount installation
- Optional PDUSIDEBRKT enable 0U vertical installation in compatible racks
- Back-panel grounding lug

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Tripp Lite PDU1220T power distribution unit (PDU)

Name: Tripp Lite PDU1220T power distribution unit (PDU)
Brand: Tripp Lite
SKU: PDU1220T
Price: 274.86 CAD
Availability: InStock

$274.86 CAD

$274.86 CAD ~~$302.35 CAD~~

Taxes and Shipping calculated at checkout.

Tripp Lite 2.4kW Single-Phase Basic PDU, 120V Outlets (13 5-15/20R) L5-20P, 15ft Cord, 1U Rack-Mount, Basic, 1U, Horizontal, Metal, Black, 13 AC outlet(s)

Vendor: Tripp Lite

Type: Power Distribution Units (PDUs)

Available stock: 4
🚨 Hot Demand! Only 4 left — grab yours before it's gone! 💥

Free Shipping over $2000

Estimated delivery: Nov 01 - Nov 05

Information

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Design
PDU types	Basic
Rack capacity	1U
Mounting	Horizontal
Housing material	Metal
Product colour	Black
Ports & interfaces
AC outlets quantity	13 AC outlet(s)
Power plug	NEMA L5-20P
AC outlet types	NEMA 5–15R, NEMA 5–20R
Features
Cable length	4.57 m
Power
Nominal input voltage	120 V
AC input frequency	50 - 60 Hz
Maximum current	20 A
Nominal output voltage	100-127 V
Certificates
Compliance certificates	RoHS
Certification	UL60950-1/CSA-C22.2
Operational conditions
Storage temperature (T-T)	-15 - 50 °C
Operating altitude	0 - 3000 m
Weight & dimensions
Width	445 mm
Depth	114 mm
Height	45 mm
Weight	2.36 kg
Weight (imperial)	2.36 kg (5.2 lbs)
Packaging data
Package weight	2.59 kg
Package width	57.2 mm
Package depth	518.2 mm
Package height	236.2 mm
Logistics data
Country of origin	China
Master (outer) case GTIN (EAN/UPC)	10037332119145
Master (outer) case width	353.1 mm
Master (outer) case length	523.2 mm
Master (outer) case height	254 mm
Master (outer) case gross weight	16.8 kg
Products per master (outer) case	6 pc(s)
