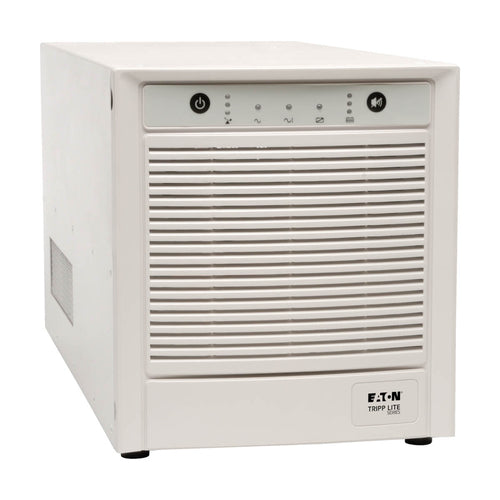

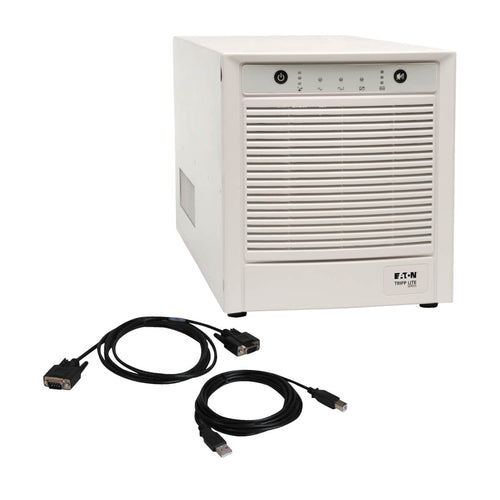

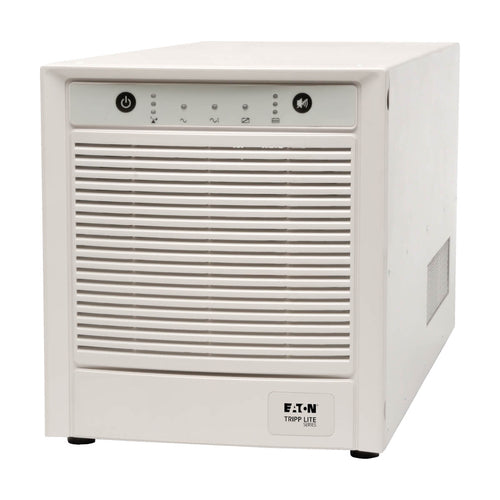

Tripp Lite SMART2500XLHG uninterruptible power supply (UPS)
Tripp Lite SMART2500XLHG uninterruptible power supply (UPS)
Available stock: 1
-
Estimated delivery: Oct 18 - Oct 22
Share this product
Couldn't load pickup availability
Infomation
Infomation
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 2.2 kVA |
| Output power | 1920 W |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 120 V |
| Input frequency | 60 Hz |
| Output operation voltage (min) | 115 V |
| Output operation voltage (max) | 120 V |
| Maximum current | 15 A |
| Surge energy rating | 510 J |
| Response time | 4 ms |
| Power factor | 0.87 |
| Emergency Power Off (EPO) | Yes |
| EMI/RFI noise filtering | Yes |
| Surge protection | Yes |
| Power protection features | Over voltage, Under voltage |
| Audible alarm(s) | Yes |
| Audible alarm modes | Battery replacement |

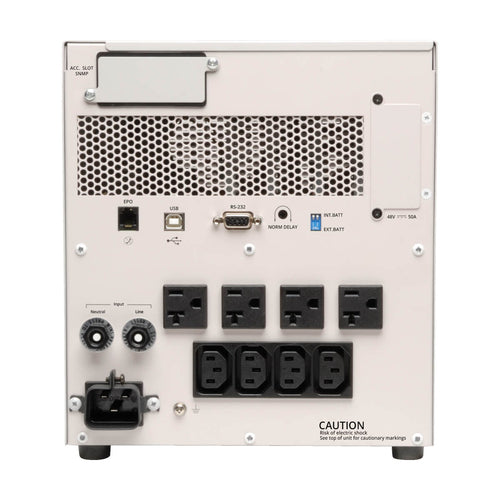

| Ports & interfaces | |
| AC outlet types | C13 coupler, NEMA 5–15 |
| Power plug | C20 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| Battery | |
| Number of battery cells | 1 |
| Typical backup time at full load | 4.4 min |
| Typical backup time at half load | 13 min |
| Battery recharge time | 4.5 h |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Design | |
| Form factor | Tower |
| Housing material | Polyvinyl chloride (PVC) |
| Cable length | 1.8 m |
| Cooling type | Active |
| Built-in fan | Yes |
| Product colour | White |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | UL, CSA, FCC, EMI |
| Weight & dimensions | |
| Width | 226.1 mm |
| Depth | 484.9 mm |
| Height | 246.9 mm |
| Weight | 33.2 kg |
| Packaging data | |
| Package width | 355.6 mm |
| Package depth | 609.6 mm |
| Package height | 406.4 mm |
| Package weight | 45.4 kg |
| Logistics data | |
| Master (outer) case width | 355.6 mm |
| Master (outer) case length | 609.6 mm |
| Master (outer) case height | 406.4 mm |
| Master (outer) case gross weight | 45.4 kg |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | China |
