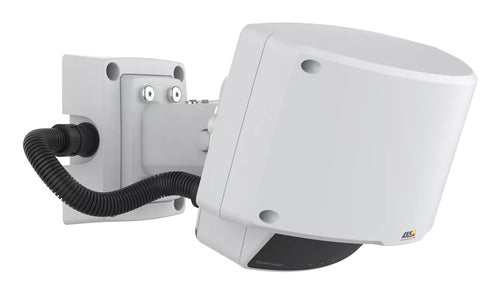

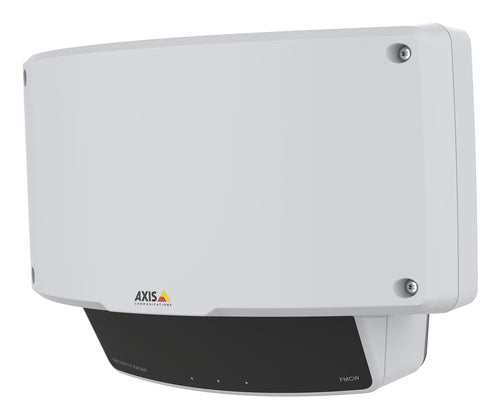

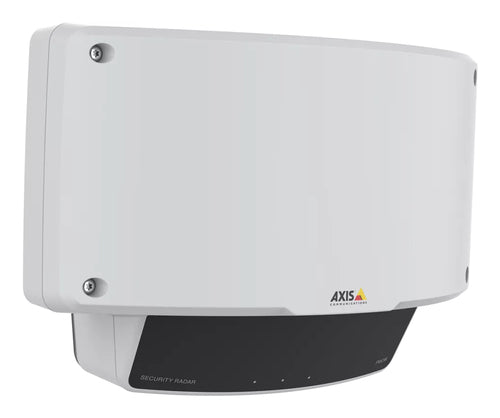

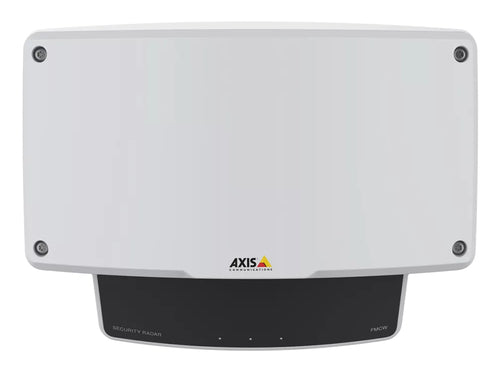

Axis 01564-001 motion detector
Axis 01564-001 motion detectorAvailable stock: 10
-
Estimated delivery: Oct 22 - Oct 26
Share this product
Couldn't load pickup availability
Information
Information
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Features | |
|---|---|
| Product colour | White |
| Installation height (max) | 3.5 m |
| Detection angle | 180° |
| Certification | EN 300440, EN 301489-1, EN 301489-51, EN 62311, FCC 15 C, ANATEL, AS/NZS 4268, ICASA, IFETEL, MIC, MoC, NCC, RSS-210 EN 55032 A, EN 55024, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, FCC 15 B A, ICES-3(A)/NMB-3(A), KC KN32 A, RCM AS/NZS CISPR 32 A, VCCI B, EAC IEC/EN/UL 62368-1, IEC/EN/UL 60950-22 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK08, NEMA 250 Type 4X |
| Security | |
| Connectivity technology | Wired |
| Operating frequency | 2405 - 2425 MHz |
| Detection distance | 85 m |
| Power | |
| Power source type | DC |
| Input voltage | 8 - 28 V |
| Power consumption (typical) | 10 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 10 - 100% |
| Weight & dimensions | |
| Width | 285 mm |
| Depth | 206 mm |
| Height | 152 mm |
| Weight | 2.4 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Manual | Yes |
