Designed to perfectly match Axis network door controllers and Axis credentials, AXIS A4020-E Reader offers secure and seamless touch-free entry. Ideal for use in harsh environments both indoors and outdoors, it features a mullion-mount design to fit perfectly in narrow spaces and door frame installations. It supports most types of smart RFID card standards with 13.56MHz credential technologies and includes out-of-the-box support for Open Supervised Device Protocol (OSDP) for secure bidirectional communication. Packed with built-in cybersecurity features, it helps prevent unauthorized access and safeguards your system. Furthermore, this smart reader supports Secure Channel Protocol (SCP) enabling secure communications and connections.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

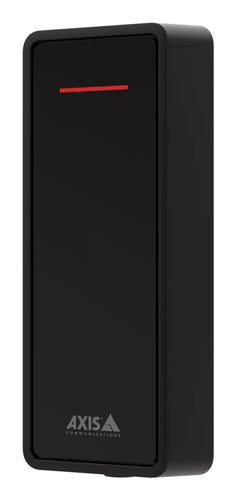

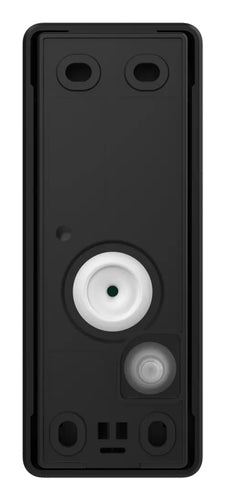

RFID Reader Axis 02144-001 48mm 27mm 121mm - 02144-001

Name: RFID Reader Axis 02144-001 48mm 27mm 121mm - 02144-001
Brand: Axis
SKU: 02144-001
Price: 234.93 EUR
Availability: InStock

€234,93 EUR

€234,93 EUR ~~€279,57 EUR~~

Taxes and Shipping calculated at checkout.

Deployment environments requiring efficient and reliable RFID reading capabilities will find the Axis 02144-001 RFID reader an essential asset. This compact reader is ideal for various applications, including inventory management, access control, and asset tracking.

With dimensions of 48 mm x 27 mm x 121 mm and weighing just 118 g, this reader operates effectively in temperature ranges from -30 °C to 65 °C, ensuring versatility in challenging environments. Its robust design supports humidity levels from 10% to 100%, making it suitable for both indoor and outdoor use.

Dimensions: 48 mm x 27 mm x 121 mm
Weight: 118 g
Operating temperature: -30 °C to 65 °C
Humidity: 10% to 100%

Built for operational efficiency in environments that require reliable RFID solutions, this reader is especially suited for logistics teams, IT departments, and facilities managing extensive asset inventories.

Vendor: Axis

Type: RFID Readers

Available stock: 10

★

Free Shipping over €450

Estimated delivery: Nov 02 - Nov 06

Information

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Technical details
Interface	RS-485
Frequency	13.56 kHz
Product colour	Black
International Protection (IP) code	IP65
LED indicators	Yes
Housing material	Plastic
Certification	EN 61000–6–1, EN 61000–6–3, FCC Part 15 Subpart B Class B, EN 300330, EN 301489-1, EN 301489-3, EN 62311, CAN/CSA-C22.2 No. 60950-22, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP65, IEC/EN 62262 IK07, NEMA 250 Type 4X
Logistics data
Harmonized System (HS) code	84719000
Weight & dimensions
Width	48 mm
Depth	27 mm
Height	121 mm
Weight	118 g
Operational conditions
Operating temperature (T-T)	-30 - 65 °C
Operating relative humidity (H-H)	10 - 100%
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95%
