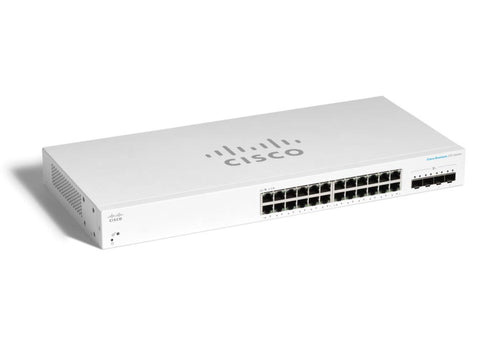

Network Switch Cisco CBS220-24T-4X Managed L2 Gigabit Ethernet Rack Mounting - CBS220-24T-4X-EU
Network Switch Cisco CBS220-24T-4X Managed L2 Gigabit Ethernet Rack Mounting - CBS220-24T-4X-EUThe Cisco CBS220-24T-4X is designed for IT admins needing reliable and managed layer 2 connectivity in data centers or enterprise networks.
This managed switch supports Gigabit Ethernet speeds with L2 capabilities to enhance network performance and management. Its rack-mountable design ensures efficient use of space in server rooms.
- Model: CBS220-24T-4X
- Type: Managed
- Layer: L2
- Speed: Gigabit Ethernet (10/100/1000)
- Form factor: Rack mounting
Ideal for IT administrators and procurement staff overseeing network infrastructure in enterprise environments.
Available stock: 3
-
Estimated delivery: Nov 01 - Nov 05
Share this product
Couldn't load pickup availability
Information
Information
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Network | |
| Networking standards | IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z, IEEE 802.1D, IEEE 802.1w, IEEE 802.1x |
| 10G support | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Data transmission | |
| Switching capacity | 128 Gbit/s |
| MAC address table | 8192 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Security | |
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 512 |
| IGMP snooping | Yes |
| IGMP entries | 256 |
| Security algorithms | SSL/TLS |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Multicast features | |
| Multicast support | Yes |
| Number of multicast groups filtered | 256 |
| Protocols | |
| Management protocols | SNMP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
| Rack mounting | Yes |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Number of fans | 1 fan(s) |
| Performance | |
| Firmware upgradeable | Yes |
| Power | |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 203 mm |
| Height | 44 mm |
| Weight | 2.69 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
