The ProLite TN7505A-B1AG is a large-format professional touch display, without an operating system, designed for environments where security, reliability and control are non-negotiable. Despite its minimalist structure, the TN7505A is exceptionally easy to use: simply connect your source and it works. The responsive multi-touch panel, 4K UHD resolution and high brightness deliver a precise and professional experience for collaboration, presentations and interactive applications. Built-in annotation allows users to write directly on the screen with a pen, marking up presentations or any on-screen content in real time for clear and effective communication. The TN7505A is the ideal choice for banks, courts, defence organisations, IT departments, universities and other high-security or compliance-driven environments where simplicity, transparency and trust are essential.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

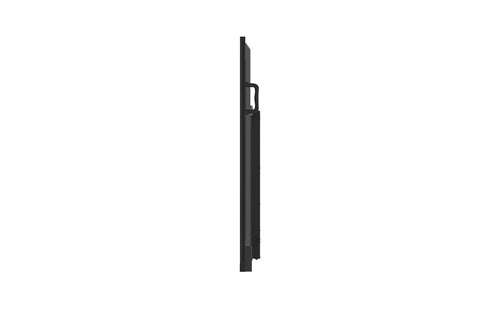

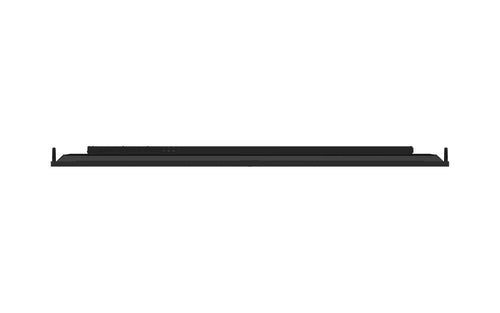

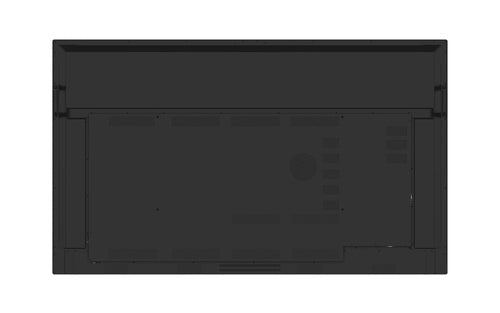

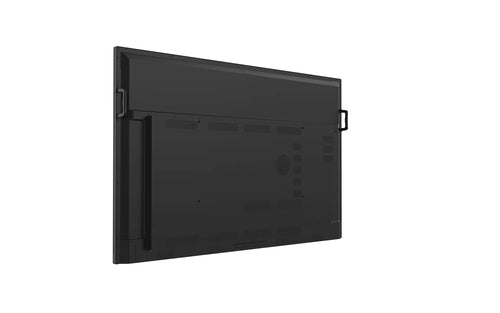

iiyama TN7505A-B1AG Signage Display

Name: iiyama TN7505A-B1AG Signage Display
Brand: iiyama
SKU: TN7505A-B1AG
Price: 1068.42 EUR
Availability: InStock

€1.068,42 EUR

€1.068,42 EUR ~~€1.175,26 EUR~~

Taxes and Shipping calculated at checkout.

iiyama TN7505A-B1AG, Interactive flat panel, 189.3 cm (74.5\"), 3840 x 2160 pixels

Vendor: iiyama

Type: Signage Displays

Available stock: 10

★

Free Shipping over €450

Estimated delivery: Nov 01 - Nov 05

Information

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Display
Panel type	IPS
Display diagonal	189.3 cm (74.5")
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Touchscreen	Yes
Touchscreen technology	Infrared
Native aspect ratio	16:9
Response time	5 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Active display area (W x H)	1650 x 928 mm
Display diagonal (metric)	189.273 cm
Horizontal scan range	30 - 135 kHz
Native refresh rate	60 Hz
Haze rate	25%
Ports & interfaces
HDMI ports quantity	2
HDMI input ports quantity	2
VGA (D-Sub) input ports	1
DisplayPorts quantity	1
USB port	Yes
USB ports quantity	1
USB connector type	USB Type-C, USB Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	65 W
USB Type-C DisplayPort Alternate Mode	Yes
Ethernet LAN (RJ-45) ports	2
PC Audio in	Yes
RS-232C	Yes
Remote (IR) output	1
PC Audio out	Yes
OPS module slot	Yes
Audio Return Channel (ARC)	Yes
Audio
Built-in speaker(s)	Yes
Number of built-in speakers	2
Design
Product design	Interactive flat panel
Placement supported	Indoor
Orientation	Horizontal
Product colour	Black
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	800 x 400 mm
Anti-glare screen	Yes
Positioning accuracy	1 mm
Performance
Purpose	Education
Picture-in-Picture	Yes
On Screen Display (OSD)	Yes
Number of OSD languages	8
On Screen Display (OSD) languages	German, English, Spanish, French, Italian, Japanese, Dutch, Russian
Power
Power consumption (typical)	175 W
Power consumption (standby)	0.4 W
Power consumption (off)	0.3 W
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	175 kWh
Energy efficiency scale	A to G
Weight & dimensions
Display width	1710.2 mm
Display depth	120.4 mm
Display height	1036.3 mm
Display weight	54.5 kg
Width	1710.2 mm
Depth	120.4 mm
Height	1036.3 mm
Weight	54.5 kg
Packaging content
Remote control included	Yes
Cables included	RS-232, AC, HDMI, USB
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Network
Ethernet LAN	Yes
Technical details
Audio in (mini jack)	Yes
OPS slot	1
User controls	Color temp., image mode (including eye protection mode), sound mode, no signal standby ( Off / 1 min. / 3 min. / 5 min. / 15 min. / 30 min.), meeting mode, time scheduler, key lock, PIP & PBP, brightness / contrast.
Sustainability certificates	ErP
Compliance certificates	CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Brightness	450 cd/m²
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Power supply type	Internal
