Highly efficient Wi-Fi 6 and PoE Passthrough for complex environments

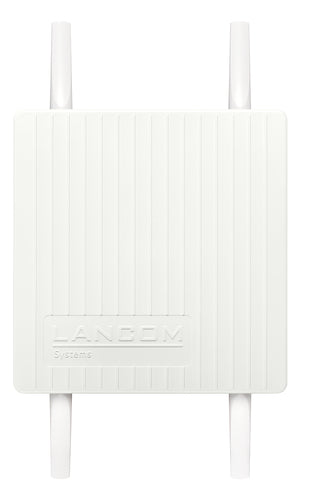

Whether amusement parks, stadiums, or schoolyards – outdoor areas with a large number of users require reliable Wi-Fi. For these high-density environments with high performance requirements, the OX-6402 in an extremely durable IP67 housing with Wi-Fi 6 is the ideal choice. The external antennas allow versatile use for wide-area or targeted Wi-Fi coverage. With Power over Ethernet Passthrough, simultaneous power supply of the access point and connected devices, such as IP cameras, is easily possible with just one cable.

Dual concurrent Wi-Fi with an aggregated datarate of up to 3,550 Mbps
The LANCOM OX-6402 offers the Wi-Fi 6 standard (IEEE 802.11ax) for high-speed wireless LAN for clients in the 2.4- and 5-GHz bands. Wi-Fi 6 technology achieves transmission rates of up to 2.400 Mbps at 5 GHz and simultaneously up to 1.150 Mbps at 2.4 GHz.

PoE Passthrough for flexible power supply with minimal installation effort
The LANCOM OX-6402 ccan be operated both via Power over Ethernet (PoE) according to IEEE 802.3at and via PoE according to IEEE 802.3bt. When connected to a switch with PoE according to IEEE 802.3bt, the access point is also able to supply another PoE-capable device such as an IP camera via PoE Passthrough. This means that the devices can be placed completely independently of existing power outlets – minimizing the need for complex cabling in outdoor areas and saving installation costs at the same time.

Advantages

Perfect-fit Wi-Fi thanks to a flexible choice of antennas
The LANCOM OX-6402 offers a perfect Wi-Fi fit thanks to its flexible antenna design. The 4 omnidirectional antennas included in the scope of delivery provide comprehensive coverage, depending on their mounting. Alternatively, you have the option of mounting external antennas according to your individual needs, e.g. to additionally focus high-density areas with sector antennas. It is also possible to set up point-to-point links over medium distances with the use of suitable, more directional antennas. The LANCOM OX-6402 with standard connector (N jack) enables the connection of external antennas regardless of the manufacturer.

Enormous additional services for maximum future security
The LANCOM OX-6402 supports the fast WLAN standard IEEE 802.11ax (Wi-Fi 6), so you are technically well equipped for future challenges. LANCOM Systems provides a warranty of 3 years on the OX-6400, which can easily be extended to 5 years with the Warranty Basic Option L or the Warranty Advanced Option L . On the software side, you also benefit from the high LANCOM standards: Several times a year, you receive free major releases of the LCOS LX operating system with new, future-proof features. Even if a product is discontinued, we offer free major releases, critical security fixes (security updates) based on the last available software version, and free technical manufacturer support for at least another 2 years as part of LANCOM software lifecycle management.

Zero-touch deployment with the LANCOM Management Cloud
Fast and easy network integration of the access point as well as automatic configuration assignment - without manual configuration. In WLAN Controller- or LANCOM Management Cloud-based installations, the access point immediately receives the right configuration after network authentication.

Professional IoT support via BLE and USB
With the LANCOM OX-6402, you can easily dive into the world of the Internet-of-Things (IoT). Support for Bluetooth Low Energy (5.1) and USB 3.0 opens up many possibilities for you to communicate with modern WLAN sensors in devices or objects and use innovative applications such as asset tracking or digital signage with Wireless ePaper. In this way, you can easily operate solutions for digital room signage, electronic shelf labels, and other ePaper applications via the optionally available LANCOM Wireless ePaper USB.

Secure integration of external users
Using a cloud-managed hotspot via LANCOM Management Cloud, the LANCOM OX-6402 is ideal for the provision of Wi-Fi hotspots. The user benefits from secure and user-friendly Wi-Fi access, and the hotspot provider has the security of knowing that its own network is separate from the guest network.

Maximum reliability in all weather conditions
The LANCOM OX-6402 has an highly durable IP67 metal housing, making it completely dust- and waterproof. Built-in status LEDs show you the status of the device at all times. A temperature range of -30°C to +65°.
