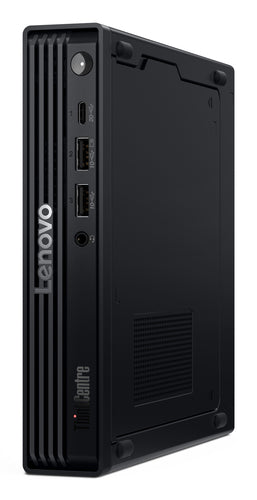

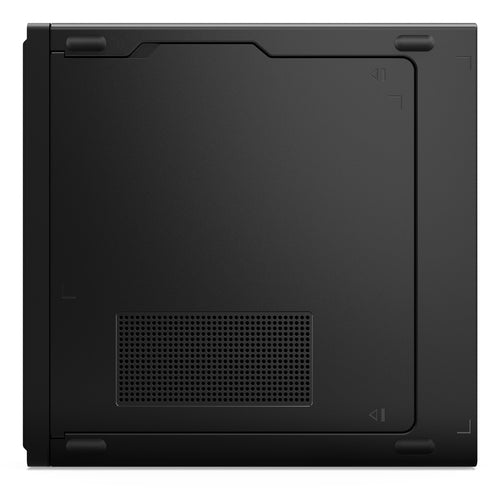

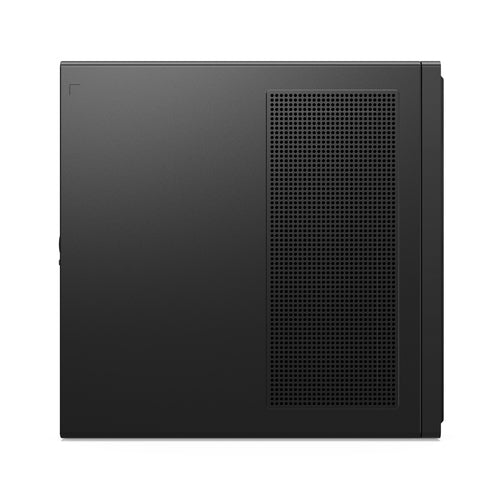

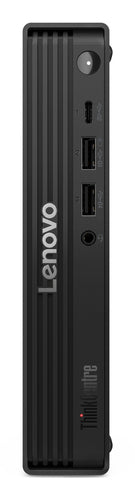

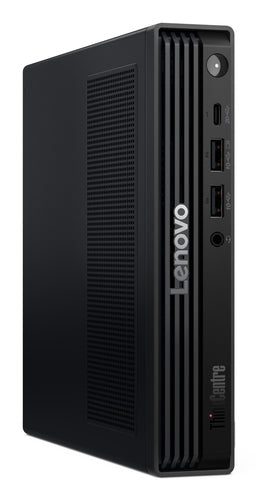

Lenovo ThinkCentre M90q Gen 6
Lenovo ThinkCentre M90q Gen 6Available stock: 38
-
Estimated delivery: Nov 03 - Nov 07
Share this product
Couldn't load pickup availability
Information
Information
No information available.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 9 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 285 |
| Processor cores | 24 |
| Processor threads | 24 |
| Processor boost frequency | 5.6 GHz |
| Performance cores | 8 |
| Efficient cores | 16 |
| Performance-core Max Turbo Frequency | 5.4 GHz |
| Efficient-core Max Turbo Frequency | 4.6 GHz |
| Performance-core base frequency | 2.5 GHz |
| Efficient-core base frequency | 1.9 GHz |
| Processor cache | 36 MB |
| Processor cache type | Smart Cache |
| Processor socket | LGA 1851 (Socket V1) |
| Processor base power | 65 W |
| Maximum turbo power | 182 W |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 36 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 8 TOPs |
| Memory | |
| Internal memory | 32 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
| Memory channels | Dual-channel |
| Storage | |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Self-Encrypting Drive (SED) | Yes |
| Card reader integrated | No |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
| Graphics card | Intel Graphics |
| Performance | |
| Motherboard chipset | Intel® Q870 |
| Fingerprint reader | No |
| Trusted Platform Module (TPM) | Yes |
| Product type | Mini PC |
| Trusted Platform Module (TPM) version | 2.0 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 7 BE200 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ethernet interface type | Gigabit Ethernet |

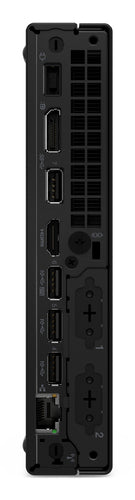

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Power | |
| Power supply | 230 W |
| Design | |
| Chassis type | Mini PC |
| Volume | 1 L |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Software | |
| Operating system language | German |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
| Intel® Smart Cache | Yes |
| Display | |
| Display included | No |
| Audio | |
| Audio chip | Realtek ALC233VB |
| Audio system | High Definition Audio |
| Number of speakers | 1 |
| Weight & dimensions | |
| Width | 179 mm |
| Depth | 182.9 mm |
| Height | 36.5 mm |
| Weight | 1.34 kg |
| Packaging content | |
| Mouse included | Yes |
| Mouse connectivity | Wired |
| Keyboard included | Yes |
| Certificates | |
| Certification | ENERGY STAR,TCO,TCO10,EPEAT Gold,EPEAT Silver,RoHS,ErP |
| Keyboard | |
| Keyboard connectivity | Wired |
