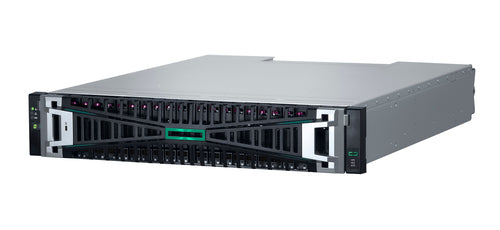

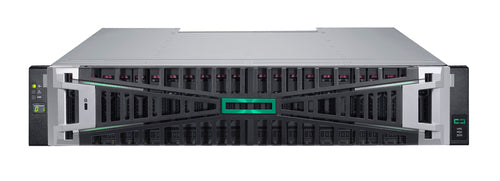

HPE MSA 2070 SFF 2x32Gb FC 4-port Controller 12x1.92TB SSD 4x32Gb SFP FC XCVR 23TB Storage Array disk array
HPE MSA 2070 SFF 2x32Gb FC 4-port Controller 12x1.92TB SSD 4x32Gb SFP FC XCVR 23TB Storage Array disk array
Available stock: 1
-
Estimated delivery: Nov 10 - Nov 14
Share this product
Couldn't load pickup availability
Information
Information
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Storage | |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | SSD |
| Number of storage drives installed | 12 |
| Total installed storage capacity | 23 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 24 |
| Maximum supported storage capacity | 2710 TB |
| Storage drive capacity | 1.92 TB |
| Storage drive size | 2.5" |
| Supported storage drive interfaces | SAS |
| RAID levels | 0, 6, 1, 5, 10 |
| Storage drive type | Twelve 1.92 TB Read Intensive SSDs included; Add up to twelve additional SFF HDD and/or SSD per base array |
| Self-Encrypting Drive (SED) | No |
| Ports & interfaces | |
| Fibre Channel | Yes |
| Design | |
| Device class | Large Enterprise Business |
| Chassis type | Rack (2U) |
| System requirements | |
| Linux operating systems supported | Yes |
| Server operating systems supported | Yes |
| Weight & dimensions | |
| Width | 445 mm |
| Depth | 508 mm |
| Height | 89 mm |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Other features | |
| Storage drive controller | 2x 32 Gb Fibre Channel 4-port Controller |
| Expansion description | 2U 24-drive SFF drive enclosure and/or 2U 12-drive LFF drive enclosure (add up to 9 in any combination) |
| Form factor | SFF |
| Compatible operating systems | Windows Server; VMware vSphere; Red Hat Linux; SUSE SLES; See HPE SPOCK for more details. |
