Information

EX3400 Ethernet Switches are a cost-effective solution for today’s most demanding converged data, voice, and video enterprise access networks. The compact, fixed-configuration 1U devices offer levels of performance and management previously available only with high-end access switches.

Featuring models offering either 24 or 48 10/100/1000BASE-T ports, the EX3400 switches also support IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for powering networked telephones, video cameras, wireless LAN access points, and other IP devices. Four front-panel dual-mode (GbE/10GbE) SFP/SFP+ uplink ports and two 40GbE QSFP+ ports are also available for connecting the switches to upstream devices.

The EX3400 supports Juniper’s unique Virtual Chassis technology for interconnecting up to 10 switches that can be managed as a single device. The EX3400 can also be configured as a satellite device in a Junos Fusion Enterprise deployment, which aggregates large numbers of access switches into a logical management platform.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

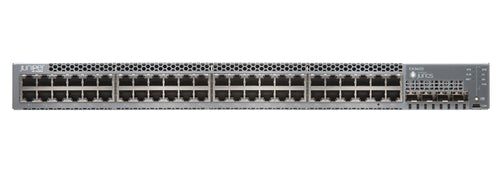

Juniper EX3400 48PORT SWITCH

Name: Juniper EX3400 48PORT SWITCH
Brand: Juniper
SKU: EX3400-48P
Price: 313916.65 INR
Availability: InStock

Rs. 313,916.65 INR

Rs. 313,916.65 INR ~~Rs. 373,560.81 INR~~

Taxes and Shipping calculated at checkout.

Juniper EX3400 48PORT SWITCH, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), 1U

Vendor: Juniper

Type: Network Switches

Available stock: 1
🚨 Hot Demand! Only 1 left — grab yours before it's gone! 💥

Free Shipping over ₹50000

Estimated delivery: Nov 10 - Nov 14

Information

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Management features
Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
System event log	Yes
MIB support	RFC 1155, RFC 1157, RFC 1212, RFC 1213, RFC 1215, RFC 1493, RFC 1643, RFC 1212, RFC 1724, RFC 1905, RFC 1981, RFC 2011, RFC 2012, RFC 2013, RFC 2096, RFC 2287, RFC 2328, RFC 2460, RFC 2464, RFC 2570-2575, RFC 2576, RFC 2578, RFC 2579, RFC 2665, RFC 2819, RFC 2863, RFC 2922, RFC 2925, RFC 3413, RFC 3621, RFC 3810, RFC 4188, RFC 4213, RFC 4291, RFC 4363, RFC 4443, RFC 4861, RFC 4862, RFC 5643
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
QSFP+ module slots quantity	2
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Port mirroring	Yes
IP routing	Yes
Link aggregation	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN
Number of VLANs	4093
Optical fiber
Fiber ethernet cabling technology	1000BASE-X
Data transmission
Switching capacity	336 Gbit/s
Throughput	250 Mpps
MAC address table	32000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9216
Security
DHCP features	DHCP server, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	802.1x RADIUS, HTTPS, SNMP, SSH-2
Authentication	MAC-based authentication, Port-based authentication
Multicast features
Multicast support	Yes
Design
Rack mounting	No
Stackable	Yes
Form factor	1U
Product colour	Black
Safety	UL-UL60950-1, C-UL CAN/CSA 22.2 No.60950-1, TUV/GS to EN 60950-1, CB-IEC60950-1, EN 60825-1
Electromagnetic compatibility	FCC 47CFR 15 A, EN 55022 A, ICES-003 A, VCCI A, AS/NZS CISPR 22 A, CISPR 22 A, EN 55024, EN 300386, CE
Performance
Virtual stacking (units)	10
Built-in processor	Yes
Processor frequency	1000 MHz
Memory type	DRAM
Internal memory	2000 MB
Flash memory	2000 MB
Noise level	46 dB
Power
Power consumption (max)	120 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	48
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3048 m
Non-operating altitude	3048 - 4877 m
Weight & dimensions
Width	437 mm
Depth	350 mm
Height	44 mm
Weight	5.74 kg
Logistics data
Harmonized System (HS) code	85176990
