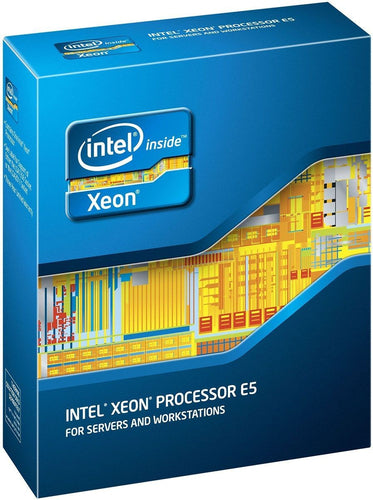

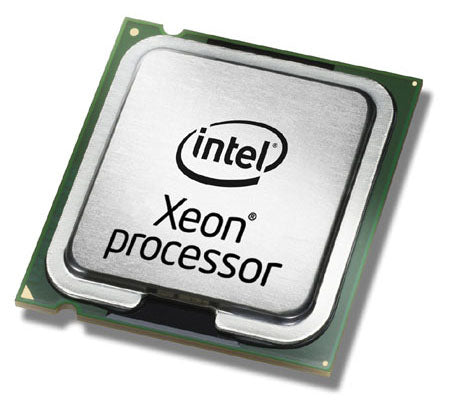

Intel Xeon E5-1650V4 processor
Intel Xeon E5-1650V4 processor
Oops! Looks like you just missed it!
-
Estimated delivery: Oct 16 - Oct 20
Share this product
Couldn't load pickup availability
Infomation
Infomation
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor model | E5-1650V4 |
| Processor base frequency | 3.6 GHz |
| Processor family | Intel® Xeon® E5 v4 |
| Processor cores | 6 |
| Processor socket | LGA 2011-v3 |
| Component for | Server/workstation |
| Processor lithography | 14 nm |
| Processor series | Intel Xeon E5-1600 v4 |
| Processor threads | 12 |
| System bus rate | 0 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 4 GHz |
| Processor cache | 15 MB |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 140 W |
| Package type | Box |
| Cooler included | Yes |
| Stepping | R0 |
| Bus type | QPI |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| Processor codename | Broadwell |
| Processor code | SR2P7 |
| Processor ARK ID | 92994 |
| Memory | |
| Maximum internal memory supported by processor | 1.53 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133,2400 MHz |
| Memory channels | Quad-channel |
| ECC | Yes |
| Graphics | |
| On-board graphics card | No |
| Features | |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0 |
| Scalability | 1S |
| Physical Address Extension (PAE) | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Physical Address Extension (PAE) | 46 bit |
| PCI Express CEM revision | 3.0 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| Processor special features | |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Transactional Synchronization Extensions | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Demand Based Switching | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel® OS Guard | Yes |
| Intel 64 | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel TSX-NI version | 1.00 |
| Conflict-Free processor | Yes |
| Intel Turbo Boost Max Technology 3.0 | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Operational conditions | |
| Tcase | 69 °C |
| Technical details | |
| Bus type units | GT/s |
| Launch date | Q2'16 |
| Processor cache | 15360 KB |
| Product type | Processor |
| Status | Launched |
| Processor brand name | Intel Xeon |
| Supported memory types | DDR4-SDRAM |
| Last change | 63903513 |
| Product family | Intel Xeon Processor E5 v4 Family |
| Bus speed | 0 GT/s |
| Servicing status | End of Servicing Updates |
| End of servicing updates date | Thursday, June 30, 2022 |
| Logistics data | |
| Harmonized System (HS) code | 8542310001 |
| Packaging data | |
| Package width | 44 mm |
| Package depth | 140 mm |
| Package height | 117 mm |
| Weight & dimensions | |
| Processor package size | 45mm x 52.5mm |
| Other features | |
| Maximum internal memory | 1.5 TB |
| Maximum internal memory | 1572864 MB |
