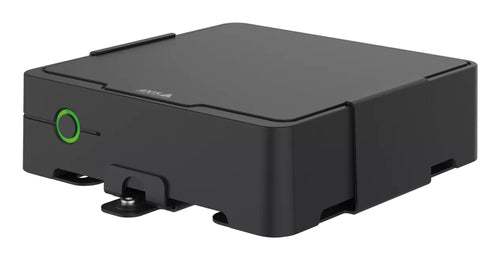

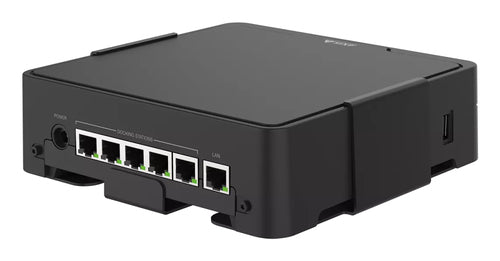

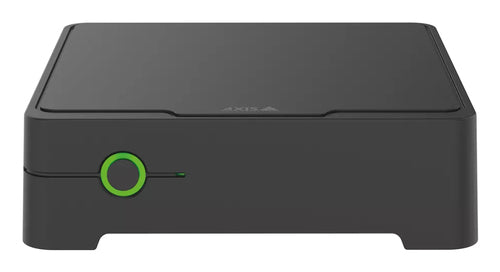

Axis 01964-003 gateway/controller
Axis 01964-003 gateway/controller
Available stock: 2
-
Estimated delivery: Oct 12 - Oct 16
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Design | |
|---|---|
| Product colour | Black |
| International Protection (IP) code | IP3X |
| Performance | |
| Control display unit | No |
| SSD capacity | 480 GB |
| Protocols | |
| Supported network protocols | IPv4, IPv6 USGv6, HTTPS , Bonjour, DNS, NTP, TCP, UDP, ICMP, DHCP, ARP |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Security | |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 6 |
| Power | |
| Power consumption (typical) | 12.25 W |
| DC input voltage | 12 V |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 180 mm |
| Height | 53 mm |
| Weight | 765 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | EN 55032 A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 A IEC/EN/UL 62368-1 IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP3X NIST SP500-267 |
