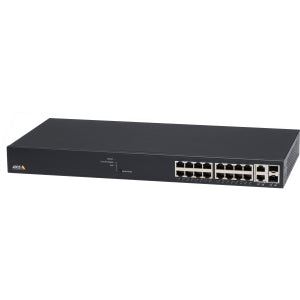

Axis 5801-693 network switch
Axis 5801-693 network switchAvailable stock: 10
-
Estimated delivery: Oct 14 - Oct 18
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| Network | |
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| 10G support | No |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Data transmission | |
| Switching capacity | 36 Gbit/s |
| Throughput | 26.8 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Security | |
| DHCP features | DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| Password protection | Yes |
| Protocols | |
| Supported network protocols | IPv4, IPv6, HTTP, HTTPS, QoS, Bonjour, UPnP, SNMP v1/v2c/v3, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, STP, RSTP, MSTP, LLDP, LLDP-MED, TFTP, SMTP, BPDU |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 240 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 442 mm |
| Depth | 211 mm |
| Height | 44 mm |
| Weight | 3 kg |
| Packaging content | |
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Certificates | |
| Certification | EN 55032 Class A, EN 55024, FCC Part 15 Subpart B Class A, VCCI Class A, ICES-003 Class A, KCC, RCM, IEC/EN/UL 60950-1, S-mark (Argentina), EAC, CE, ANATEL, JATE |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
