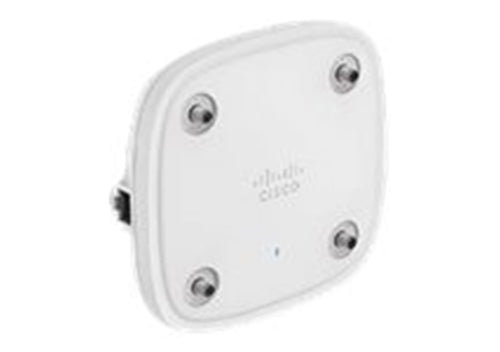

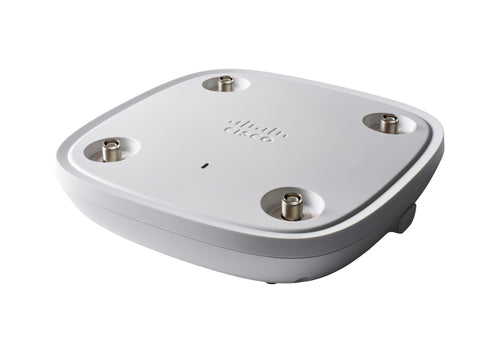

Cisco Catalyst 9120AX Series
Cisco Catalyst 9120AX SeriesAvailable stock: 10
-
Estimated delivery: Oct 16 - Oct 20
Share this product
Couldn't load pickup availability
Information
Information
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 5000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 2500 Mbit/s |
| Maximum data transfer rate (5 GHz) | 5000 Mbit/s |
| Ethernet LAN data rates | 100,1000,2500,5000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
| Channels quantity | 29 channels |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Security | |
| Security algorithms | AES, EAP, EAP-GTC, EAP-SIM, MSCHAPv2, TLS, TTLS, WPA, WPA2, WPA3 |
| Management features | |
| Syslog | Yes |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Internal RJ-45 ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| WAN connection | Ethernet (RJ-45), Mobile network (SIM), Wi-Fi |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power plug type | Type C |
| Design | |
| Placement | Ceiling, Floor, Table |
| Product colour | White |
| On/off switch | Yes |
| Antenna | |
| Antenna type | Internal & external |
| Antenna direction type | Omni-directional |
| Antenna features | Detachable antenna |
| Antennas quantity | 4 |
| Antenna gain level (max) | 6 dBi |
| Antenna connector type | RP-TNC |
| Number of connectors | 2 |
| Performance | |
| Flash memory | 1024 MB |
| Internal memory | 2048 MB |
| Technical details | |
| Products per shipping (inner) case | 1 pc(s) |
| Weight & dimensions | |
| Width | 216 mm |
| Depth | 216 mm |
| Height | 51 mm |
| Weight | 1.36 kg |
| Packaging data | |
| CD manual | Yes |
| Package width | 244.6 mm |
| Package depth | 263.7 mm |
| Package height | 90.4 mm |
| Package weight | 671.2 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| PoE adapter included | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -39 - 70 °C |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4572 m |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Country of origin | Mexico |
| Products per master (outer) case | 1 pc(s) |
