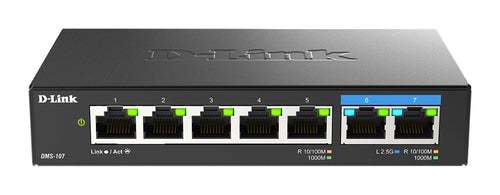

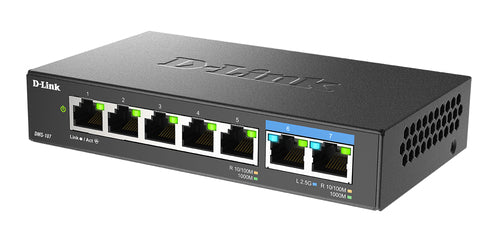

D-Link DMS-107/B network switch
D-Link DMS-107/B network switch
Available stock: 1
-
Estimated delivery: Oct 14 - Oct 18
Share this product
Couldn't load pickup availability
Information
Information
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | No |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |

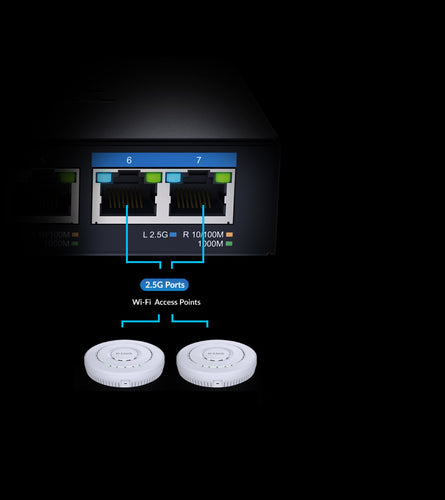

| 2.5G Ethernet (copper) ports quantity | 2 |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T, 2500BASE-T |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| MAC address auto-learning supported | Yes |
| Data transmission | |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Packet buffer memory | 2 MB |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
| Performance | |
| Fanless | Yes |
| Mean time between failures (MTBF) | 944277.78 h |
| Power | |

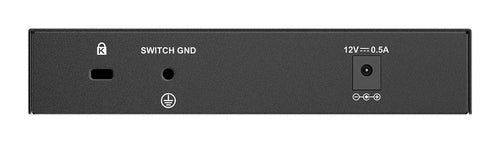

| Power source | DC |
| DC input voltage | 12 V |
| Input current | 0.5 A |
| Power consumption (typical) | 3.37 W |
| Power consumption (max) | 3.37 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Warranty period | 5 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 14.28 BTU/h |
| Weight & dimensions | |
| Width | 145 mm |
| Depth | 28 mm |
| Height | 82 mm |
| Weight | 295.2 g |
| Sustainability | |
| Sustainability compliance | Yes |
| Certificates | |
| Compliance certificates | BSMI, CE, Low Voltage Directive (LVD), RoHS |
