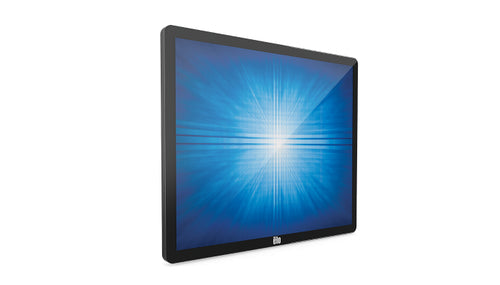

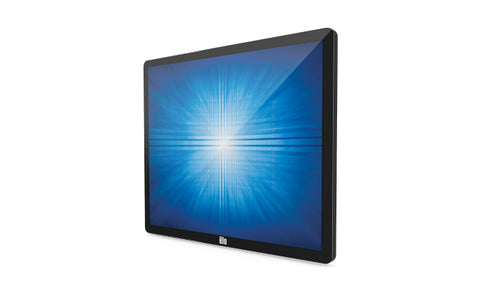

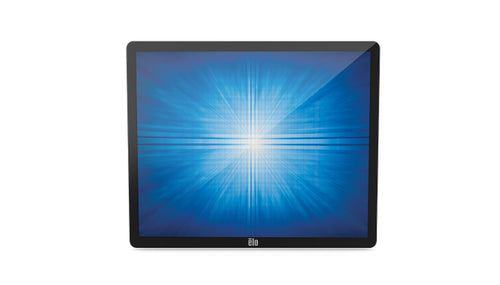

Elo Touch Solutions 1902L
Elo Touch Solutions 1902L
Available stock: 5
-
Estimated delivery: Oct 13 - Oct 17
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Display | |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display technology | LED |
| Display resolution | 1280 x 1024 pixels |
| Display brightness | 225 cd/m² |
| HD type | HD |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 5:4 |
| Response time | 14 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Horizontal scan range | 30 - 82 kHz |
| Vertical scan range | 50 - 75 Hz |
| Supported graphics resolutions | 640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA) |
| Ports & interfaces | |
| HDMI ports quantity | 1 |
| Design | |
| Product colour | Black |
| Screen shape | Flat |
| Performance | |
| International Protection (IP) code | IPX1 |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 0.8 W |
| Power consumption (off) | 0.4 W |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 11 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| Packaging data | |
| Package width | 482 mm |
| Package depth | 190 mm |
| Package height | 527 mm |
| Package weight | 6.5 kg |
| Packaging content | |
| Cables included | Audio (3.5mm), HDMI, USB, VGA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Certificates | |
| Certification | CUL, IC, CCC, CE, KCC, BSMI, FCC, UL, VCCI, CB, RCM, EAC, CoC, BIS |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Wall mountable | Yes |
| Other features | |
| Micro-USB ports quantity | 4 |
| Maximum refresh rate | 70 Hz |
| Quick start guide | Yes |
| Built-in microphone | No |
| Display viewable area (HxV) | 374.78 x 299.83 mm |
| Height (without stand) | 429.6 mm |
| Weight (without stand) | 4.3 kg |
| Depth (without stand) | 41.6 mm |
| Power supply type | AC/DC |
| Built-in camera | No |
