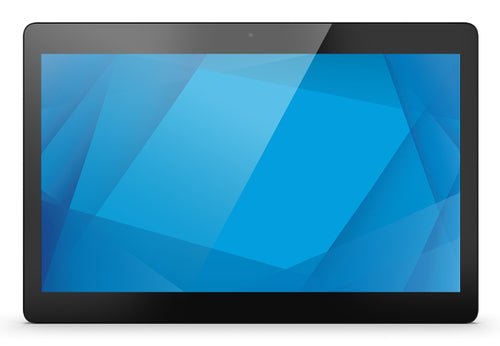

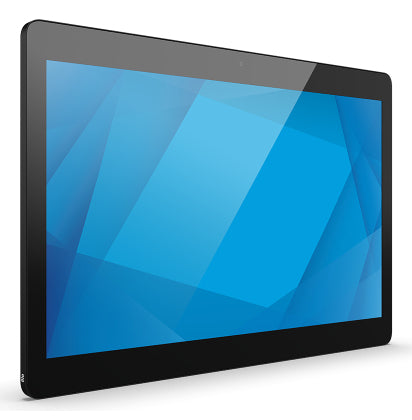

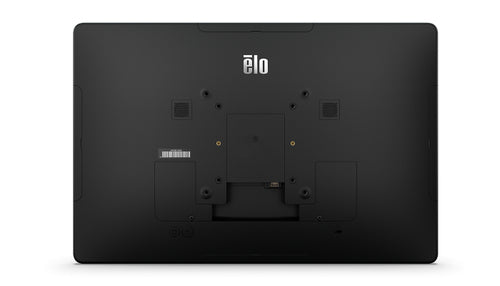

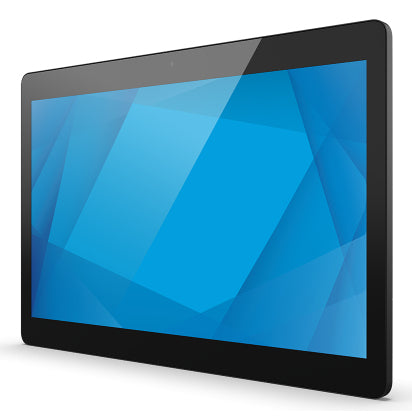

Elo Touch Solutions I-Series 4
Elo Touch Solutions I-Series 4Available stock: 10
-
Estimated delivery: Oct 11 - Oct 15
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Display | |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| Display type | TFT |
| Display brightness | 250 cd/m² |
| Touchscreen technology | Projected capacitive system |
| Contrast ratio (typical) | 700:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Response time | 25 ms |
| Effective viewing area | 344 x 194 mm |
| Display number of colours | 16.78 million colours |
| Processor | |
| Processor manufacturer | Rockchip |
| Processor family | Rockchip |
| Processor model | RK3399 |
| Memory | |
| Internal memory | 4 GB |
| Storage | |
| Total storage capacity | 32 GB |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| DC-in jack | Yes |
| Design | |
| Chassis type | All-in-One |
| Product colour | Black |
| Software | |
| Operating system installed | Android 12 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 10 W |
| Power consumption (standby) | 3.4 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 100 mm |
| Mean time between failures (MTBF) | 50000 h |
| Weight & dimensions | |
| Width | 389.7 mm |
| Depth | 22.3 mm |
| Height | 249.7 mm |
| Weight | 1.6 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 465 mm |
| Package depth | 160 mm |
| Package height | 330 mm |
| Package weight | 3.3 kg |
| Packaging content | |
| Cables included | AC |
| Quick start guide | Yes |
