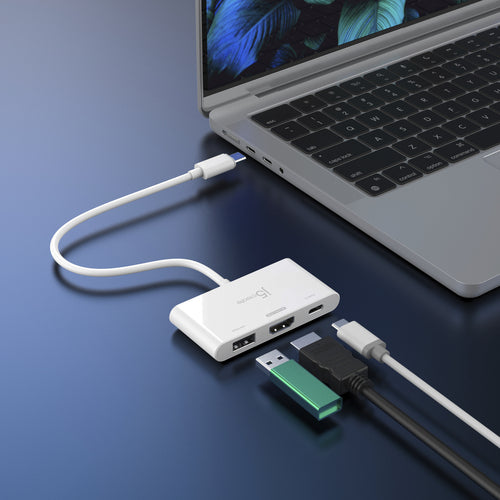

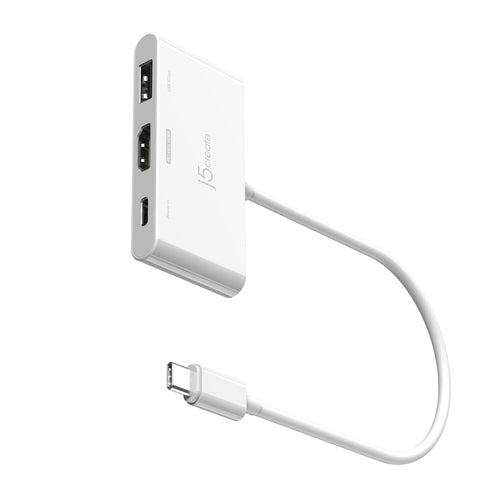

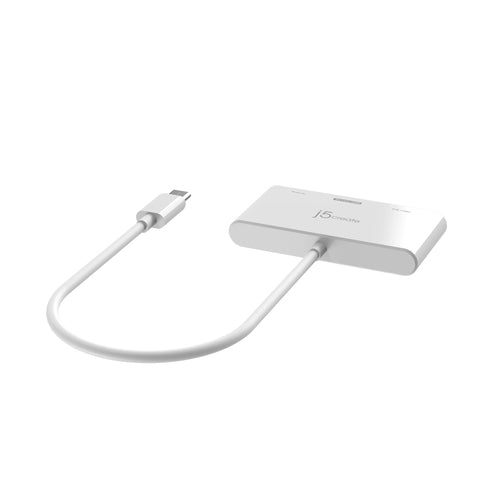

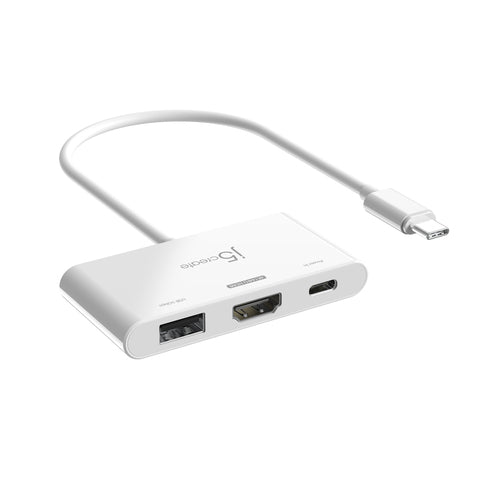

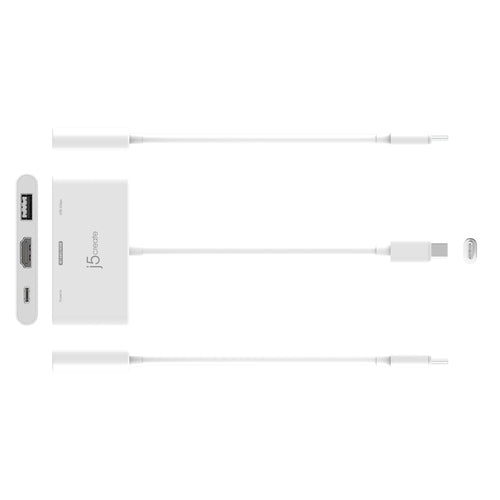

j5create JCA399-N interface hub
j5create JCA399-N interface hub
Available stock: 7
-
Estimated delivery: Oct 14 - Oct 18
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Hub interfaces | HDMI, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ports quantity | 3 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Features | |
| Data transfer rate | 5000 Mbit/s |
| Maximum refresh rate | 144 Hz |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160 |
| Supported video modes | 1080p, 1440p, 2160p |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Product colour | White |
| Housing material | Acrylonitrile butadiene styrene (ABS), Plastic |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| Cable length | 0.2 m |
| Country of origin | Taiwan |
| Power | |
| Power supply type | USB |
| Input voltage | 20 V |
| Input current | 5 A |
| Output voltage | 20 V |
| Output current | 4.5 A |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
| Weight & dimensions | |
| Width | 75 mm |
| Depth | 11 mm |
| Height | 45 mm |
| Weight | 31.5 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 170 mm |
| Package depth | 105 mm |
| Package height | 25 mm |
| Package weight | 101 g |
| Package type | Box |
| Packaging content | |
| Packaging content | 1 - USB-C® to HDMI™ 4K 144Hz & USB™ 3.2 with Power Delivery 100W (JCA399) 1 - Quick Installation Guide (QIG) |
| Operational conditions | |
| Minimum operating temperature | -1 °C |
| Maximum operating temperature | 41 °C |
| Operating temperature (T-T) | -1 - 41 °C |
| Operating temperature (T-T) | 30 - 106 °F |
| Storage temperature (T-T) | -17 - 68 °C |
| Performance | |
| Export Control Classification Number (ECCN) | EAR99 |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Master (outer) case net weight | 2.3 kg |
| Master (outer) case width | 255 mm |
| Master (outer) case length | 260 mm |
| Master (outer) case height | 224 mm |
| Products per master (outer) case | 16 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 24712795088209 |
| Shipping (inner) case width | 11.8 cm |
| Shipping (inner) case length | 19.9 cm |
| Shipping (inner) case height | 11.7 cm |
| Products per shipping (inner) case | 4 pc(s) |
| Shipping (inner) case net weight | 500 g |
| Technical details | |
| Warranty period | 2 year(s) |
| Compliance certificates | CE, REACH, RoHS |
| Other features | |
| Maximum resolution | 3840 x 2160 pixels |
