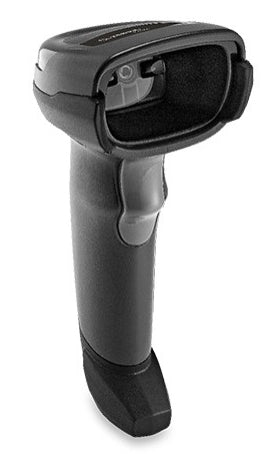

Handheld Barcode Reader Zebra DS2278 1D/2D LED 640x480 Pixels
Handheld Barcode Reader Zebra DS2278 1D/2D LED 640x480 PixelsFor retail and inventory management environments, the Zebra DS2278 handheld barcode reader offers versatile scanning capabilities for both 1D and 2D barcodes. It streamlines operations where quick and accurate scanning of various barcode types is essential.
With a high-resolution capability of 640 x 480 pixels, the DS2278 efficiently captures a wide range of barcode formats, including Codabar, QR Code, and Data Matrix, enabling seamless integration into various workflows.
- Type: Handheld barcode reader
- Barcode formats supported: 1D/2D (Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Interleaved 2 of 5, Plessey, U.P.C., Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39)
- Resolution: 640 x 480 pixels
- Indicator: LED
Built for retail operators and inventory managers requiring reliable barcode scanning across various applications.
Available stock: 10
-
Estimated delivery: Oct 14 - Oct 18
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Interleaved 2 of 5, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 640 x 480 pixels |
| Wavelength | 645 nm |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Motion tolerance (cm/s) | 13 |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Standard interfaces | Bluetooth, USB |
| USB version | 2.0 |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Performance | |
| International Protection (IP) code | IP42 |
| LED indicators | Yes |
| Built-in display | No |
| Product colour | Black |
| Power | |
| Power source type | Battery, DC |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of batteries supported | 1 |
| Battery capacity | 2400 mAh |
| Battery life | 84 h |
| Input voltage | 4.5 - 5.5 V |
| Weight & dimensions | |
| Width | 66 mm |
| Depth | 90 mm |
| Height | 175 mm |
| Weight | 214 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
