StarTech.com 2M2-REMOVABLE-PCIE drive bay panel

Infomations

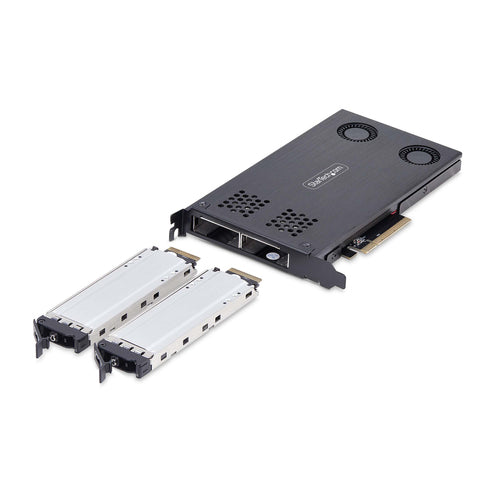

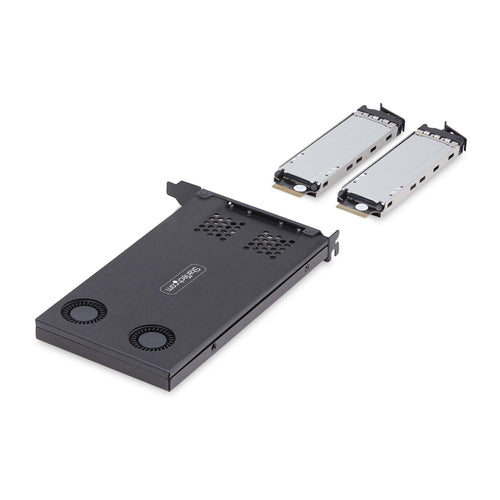

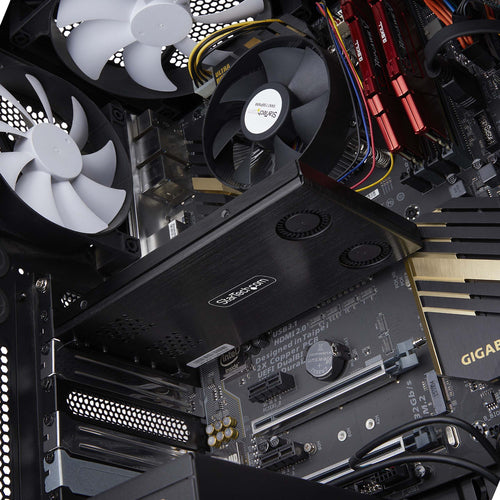

Use an available PCIe x8 or larger expansion slot to create two removable M.2 NVMe drive bays

Utilize an available PCIe x8 expansion slot to install, remove, or swap PCIe M.2 SSDs. Supports 2230, 2242, 2260, and 2280 M-Key M.2 NVMe SSDs with high-performance read/write speeds up to 64Gbps per drive.

Toolless Installation

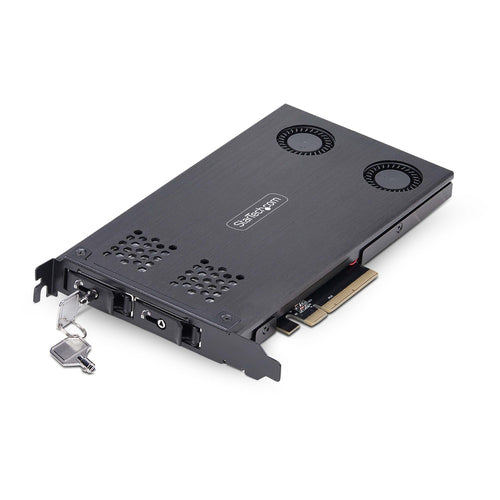

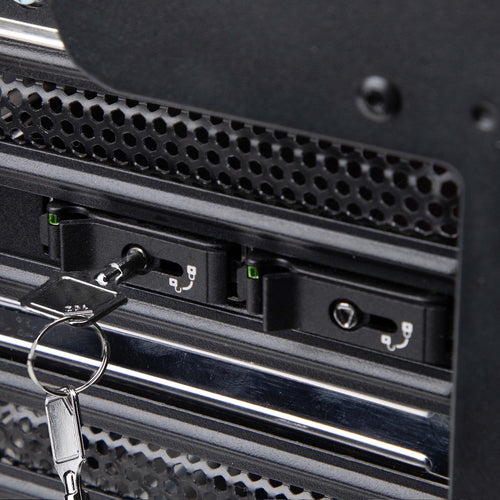

Toolless installation allows an M.2 drive to be placed into the drive tray or inserted into the drive bay without needing tools. It features a power/activity LED indicator, a latching drive tray, and a lockable installation with two included keys.

Effective Expansion

Provide quick-swap external access to internal M.2 NVMe drives without needing external enclosures or adapters, which can affect throughput. Without chipsets or adapters, the drives maintain full performance of up to 64Gbps per drive. The ability to quickly remove drives is ideal for servicing, replacing, or upgrading M.2 drives. Additional drive trays, TR-M2-REMOVABLE-PCIE, are sold separately.

Reliable Performance

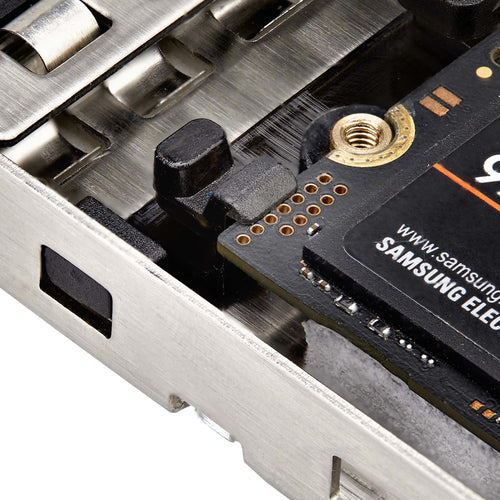

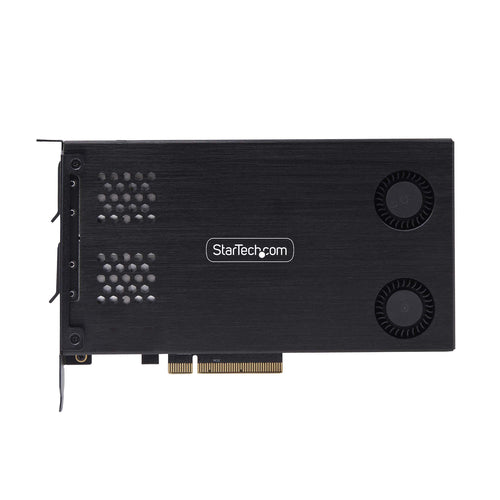

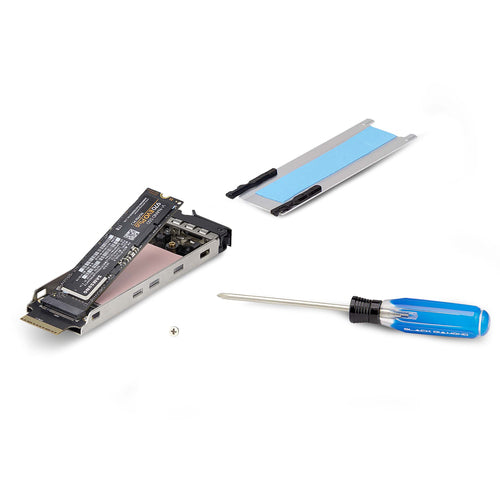

Vented stainless steel frame, bracket, and tray with thermal pads, along with an aluminum cover and active cooling fans help dissipate heat to ensure the drives stay cool during operation. Anti-vibration springs on the drive tray reduce shock or vibrations, and an optional screw provides additional stability.

Access Two M.2 PCIe SSDs Simultaneously

No on-board chip means to no drivers or software requirements and is compatible with any operating system, including Windows and Linux. M.2 backplane works with PCI Express 4.0/3.0 motherboards that support PCIe bifurcation and have an available x8 or x16 slot.

Note: This product is not compatible with M.2 SATA drives.

Note: PCIe bifurcation is required to read and write to multiple drives.

The StarTech.com Advantage

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sale

StarTech.com 2M2-REMOVABLE-PCIE drive bay panel

Name: StarTech.com 2M2-REMOVABLE-PCIE drive bay panel
Brand: StarTech.com
SKU: 2M2-REMOVABLE-PCIE
Price: 219.99 USD
Availability: InStock

StarTech.com 2M2-REMOVABLE-PCIE drive bay panel

StarTech.com Dual-Bay M.2 NVMe SSD to PCIe x8 Removable Mobile Rack; Bifurcation Required; Tool-less Installation, PCIe Backplane w/Two Hot-Swap Drive Bays, Backplane, Black, M.2, M.2, 2 fan(s), 128 Gbit/s

Vendor: StarTech.com

Type: Drive Bay Panels

$219.99 USD

$219.99 USD ~~$292.07 USD~~ 24% OFF

Available stock: 15

Free Shipping over $2000
Free Returns Within 30 days

Limited time offer

Get $20 off when you spend $1,000 or more! Learn more

Infomations

Use an available PCIe x8 or larger expansion slot to create two removable M.2 NVMe drive bays

Utilize an available PCIe x8 expansion slot to install, remove, or swap PCIe M.2 SSDs. Supports 2230, 2242, 2260, and 2280 M-Key M.2 NVMe SSDs with high-performance read/write speeds up to 64Gbps per drive.

Toolless Installation

Toolless installation allows an M.2 drive to be placed into the drive tray or inserted into the drive bay without needing tools. It features a power/activity LED indicator, a latching drive tray, and a lockable installation with two included keys.

Effective Expansion

Provide quick-swap external access to internal M.2 NVMe drives without needing external enclosures or adapters, which can affect throughput. Without chipsets or adapters, the drives maintain full performance of up to 64Gbps per drive. The ability to quickly remove drives is ideal for servicing, replacing, or upgrading M.2 drives. Additional drive trays, TR-M2-REMOVABLE-PCIE, are sold separately.

Reliable Performance

Vented stainless steel frame, bracket, and tray with thermal pads, along with an aluminum cover and active cooling fans help dissipate heat to ensure the drives stay cool during operation. Anti-vibration springs on the drive tray reduce shock or vibrations, and an optional screw provides additional stability.

Access Two M.2 PCIe SSDs Simultaneously

No on-board chip means to no drivers or software requirements and is compatible with any operating system, including Windows and Linux. M.2 backplane works with PCI Express 4.0/3.0 motherboards that support PCIe bifurcation and have an available x8 or x16 slot.

Note: This product is not compatible with M.2 SATA drives.

Note: PCIe bifurcation is required to read and write to multiple drives.

The StarTech.com Advantage

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Share:

StarTech.com 2M2-REMOVABLE-PCIE drive bay panel

$219.99 USD

$219.99 USD ~~$292.07 USD~~ 24% OFF

Features
Type	Backplane
Product colour	Black
Number of SSDs supported	2
SSD interface	M.2
SSD form factor	M.2
Hot-swap	Yes
Number of fans	2 fan(s)
Data transfer rate	128 Gbit/s
LED indicators	Yes
Key lock	Yes
RAID support	No
S.M.A.R.T. support	Yes
TRIM support	Yes
Mean time between failures (MTBF)	40000 h
Ports & interfaces
Host interface	PCI Express
PCIe version	4.0
Weight & dimensions
Width	186 mm
Depth	121 mm
Height	19 mm
Weight	500 g
Packaging data
Package width	230 mm
Package depth	151 mm
Package height	46 mm
Package weight	500 g

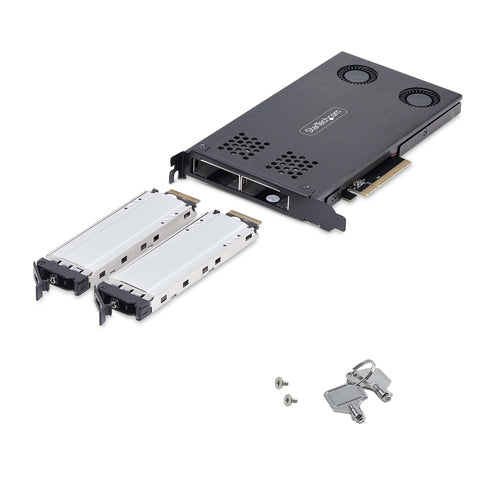

Packaging content
Quick start guide	Yes
Number of lock keys included	2 pc(s)
Number of screws	2
Operational conditions
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	10 - 60%
Technical details
Compliance certificates	RoHS
Logistics data
Products per master (outer) case	28 pc(s)
Master (outer) case width	325 mm
Master (outer) case length	485 mm
Master (outer) case height	258 mm
