StarTech.com 4PCIE-PCIE-ENCLOSURE interface cards/adapter

Infomations

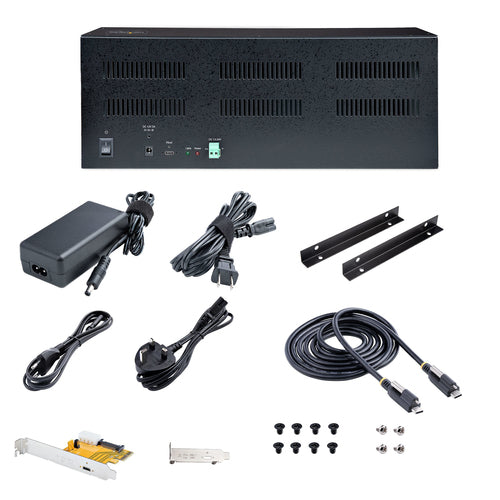

Steel Housing | Mounting Brackets | Screw-lock USB-C Cable

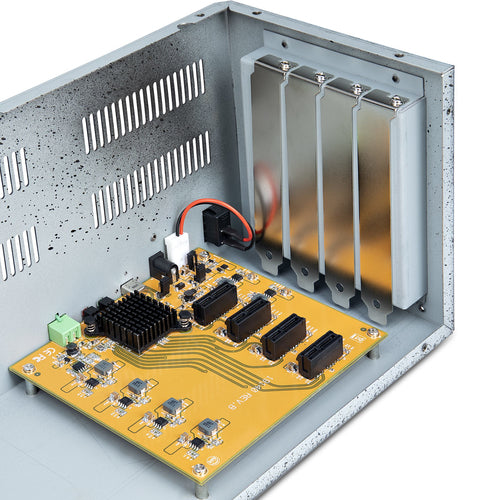

The robust expansion chassis supports 4 PCIe x1 add-on cards and features up to 10Gbps of total bandwidth. The expansion chassis connects to the host using a proprietary USB-C PCIe x2 adapter card and a locking USB Type-C cable. Take advantage of features such as Wake-on-LAN (WoL), support for PCI Express Advanced Error Reporting (AER), backwards compatibility, and multiple power capabilities.

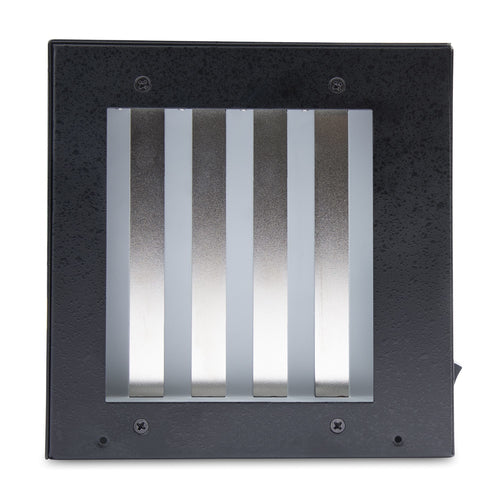

External PCIe Expansion Box

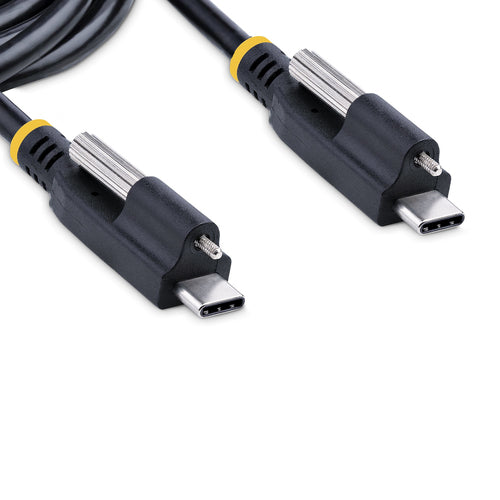

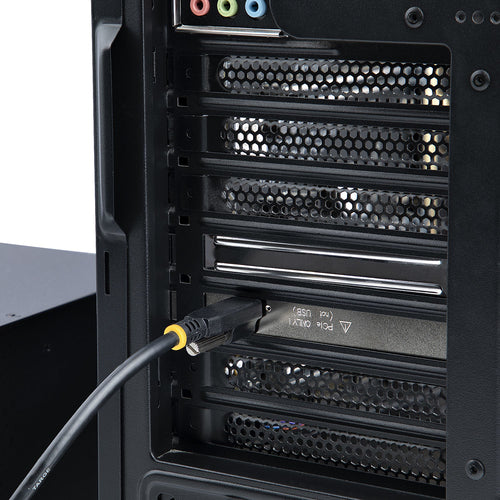

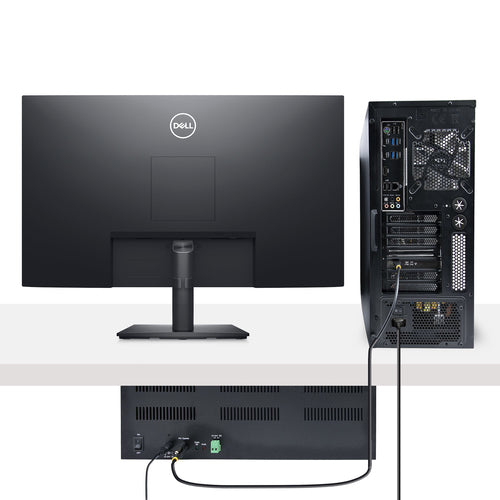

The chassis communicates with the desktop computer or server using a host card (PCIe 2.0 x2) in combination with the 5.9ft (1.8m) USB Type-C (USB-C) cable with screw-locks. The included low-profile bracket widens the compatibility as you can install the host card in small form factor (SFF) systems. Features support for PCI-E Advanced Error Reporting (AER) and EndPoint Cyclic Redundancy Check (ECRC). Both of these PCIe features to aid in establishing and maintaining PCIe connections between devices.

The PCI Express expansion box does not require drivers to be installed. It is operating system independent and compatible with Windows, Linux, or macOS. Note: the expansion cards installed in the chassis may require drivers.

Robust Construction

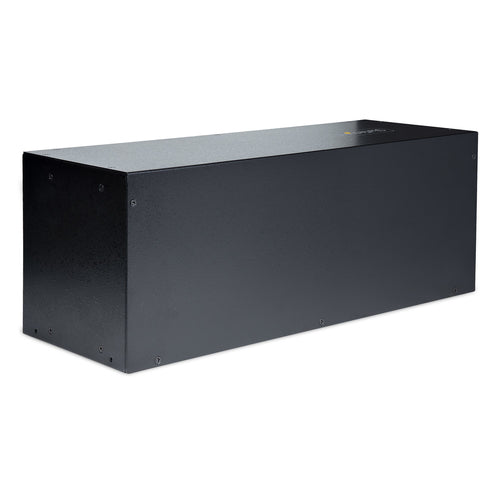

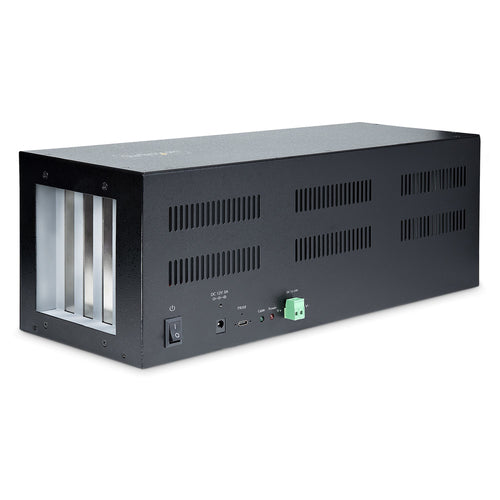

The expansion chassis is built with SECC galvanized steel, enabling it to operate in harsh environments. It features an operating temperature range of 32° to 140°F (0° to 60°C). The vented design of the chassis allows for passive cooling and quiet operation. Secure the enclosure to the desired location using the mounting brackets and included hardware.

Power Options

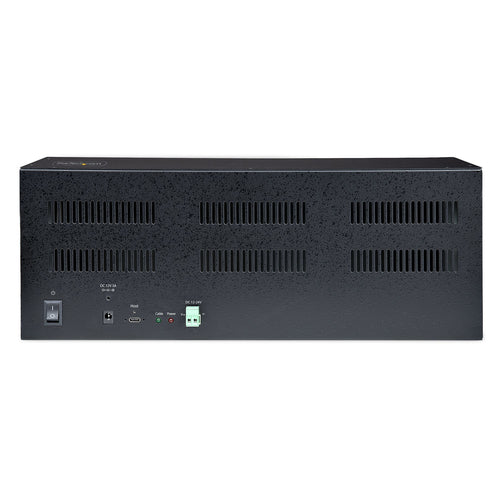

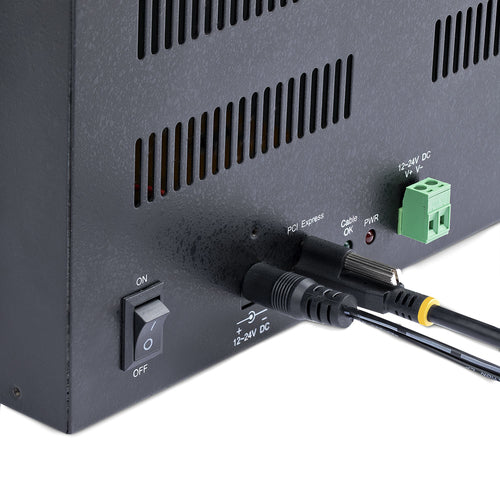

Power the expansion chassis via the PCIe Host Adapter Card with 5 or 12VDC delivered through the USB Type-C cable, the DC power adapter 12V 3A, or the terminal block port that supports 12 to 24VDC and 3A.

Applications

There are multiple application scenarios:

• Upgrade or swap cards with ease.
• Test hardware between multiple computers, operating systems, or with different devices/peripherals.

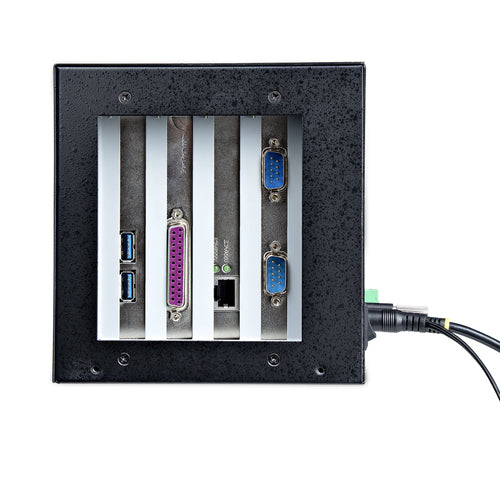

• Maximize the I/O capabilities of the host system by installing Ethernet or fiber, USB, serial, or parallel PCIe cards.

Avoid costly computer/server upgrades when more expansion slots are unavailable.

The external PCIe slots for desktop is backed for two years, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sale

StarTech.com 4PCIE-PCIE-ENCLOSURE interface cards/adapter

Name: StarTech.com 4PCIE-PCIE-ENCLOSURE interface cards/adapter
Brand: StarTech.com
SKU: 4PCIE-PCIE-ENCLOSURE
Price: 488.99 USD
Availability: InStock

StarTech.com 4-Slot PCIe Expansion Chassis with PCIe x2 Host Card, PCIe 2.0 - 10Gbps, External PCIe Slots for Desktops/Servers, PCI Express Expansion Box/Adapter, 4 PCIe x1 Slots, USB Type-C, PCIe, Terminal, Female, PCIe 2.0, Black, PC

Vendor: StarTech.com

Type: Interface Cards/Adapters

$488.99 USD

$488.99 USD ~~$627.00 USD~~ 22% OFF

Available stock: 9
🚨 Hot Demand! Only 9 left — grab yours before it's gone! 💥

Free Shipping over $2000
Free Returns Within 30 days

Limited time offer

Get $20 off when you spend $1,000 or more! Learn more

Infomations

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

StarTech.com 4PCIE-PCIE-ENCLOSURE interface cards/adapter

$488.99 USD

$488.99 USD ~~$627.00 USD~~ 22% OFF

Ports & interfaces
Host interface	USB Type-C
Host interface gender	Female
Output interface	PCIe, Terminal
Expansion card standard	PCIe 2.0
PCI Express slots quantity	4
DC-in jack	Yes
Design
Internal	No
Product colour	Black
Purpose	PC
Features
Chipset	ASMedia - ASM1806
Data transfer rate (max)	10 Gbit/s
Power
Power consumption (typical)	36 W
Output voltage	12 V
Output current	3 A
Power supply input voltage	100 - 240 V
External power adapter	Yes
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Packaging data
Power supply included	Yes
Cables included	USB Type-C to USB Type-C
Mounting brackets included	Yes
User guide	Yes
Package width	420 mm
Package depth	200 mm
Package height	240 mm
Package weight	6 kg
Logistics data
Products per master (outer) case	2 pc(s)
Master (outer) case width	520 mm
Master (outer) case length	430 mm
Master (outer) case height	270 mm
Other features
Material	Steel
