StarTech.com 5G16AINDS-USB-A-HUB interface hub

Infomations

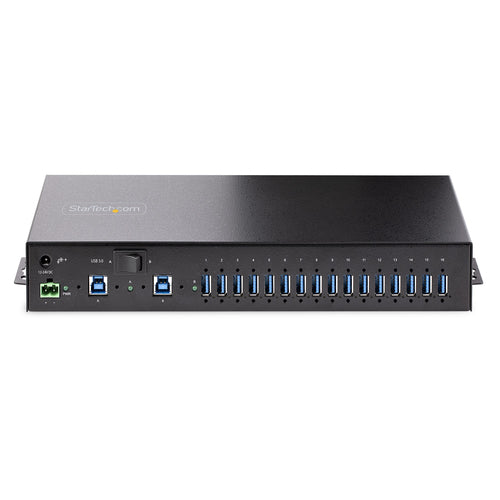

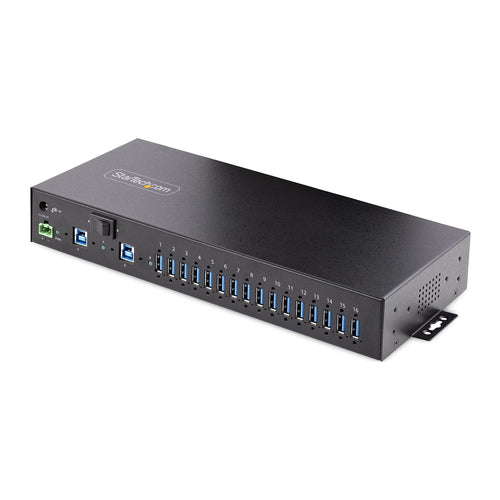

Add 16x USB 3.2 Gen 1 (5 Gbps) ports to two host computers, using this DIN-rail/Surface/Rack-mountable industrial hub

The 16-Port Industrial USB 3.0 Hub with 5Gbps of shared bandwidth provides fast and efficient transfer speeds, making it an ideal solution for data-intensive applications. The hub features a 2-port host switch, enabling users to switch between two host devices, streamlining device management. The hub also includes ESD protection to safeguard against static electricity. Versatile mounting hardware is included for flexible installation options. Additionally, the hub supports USB BC 1.2, enabling fast charging of battery-powered USB devices. The combined features of this USB hub ensure stable and reliable functionality for use in IT and industrial applications.

Engineered for Use in Industrial Environments

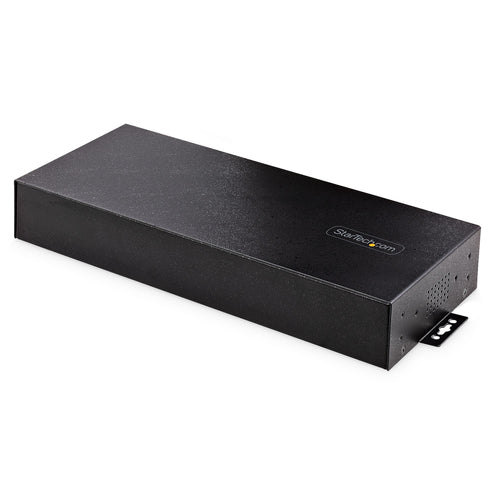

This USB hub is built to withstand harsh industrial environments. It features a rugged steel housing that provides protection against physical hazards such as drops and impacts. It is equipped with Level-4 ESD protection, with 15kV air and 8kV contact discharge ratings, to safeguard against damage caused by static electricity. These features make the USB hub an excellent choice for use in factories, production lines, and other industrial settings.

Three Mounting Options

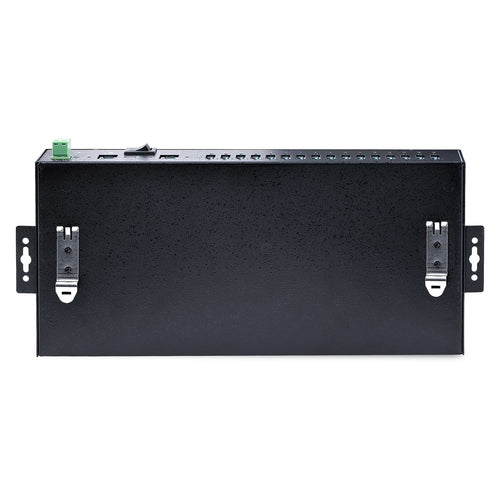

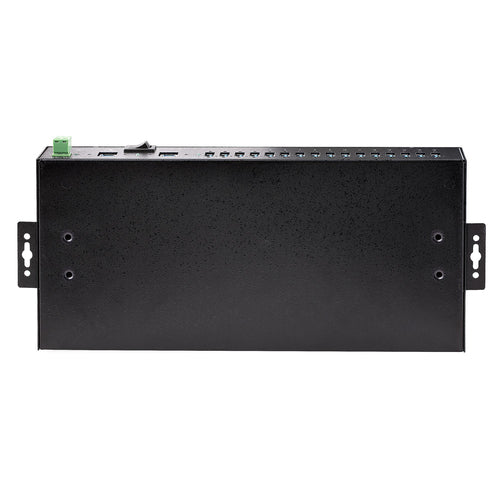

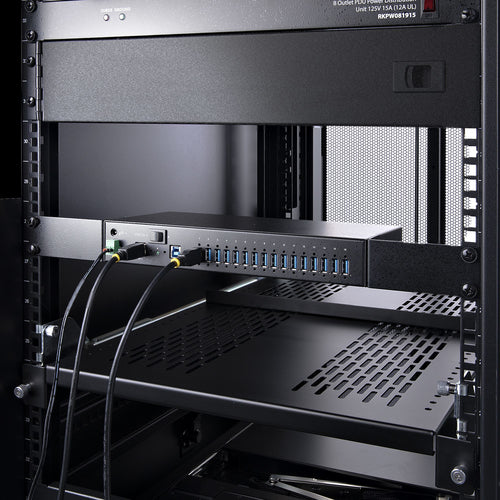

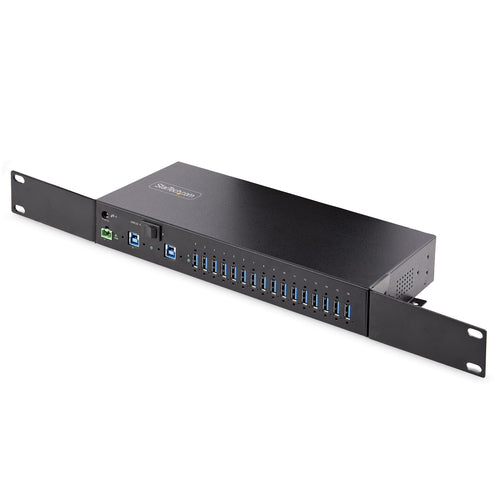

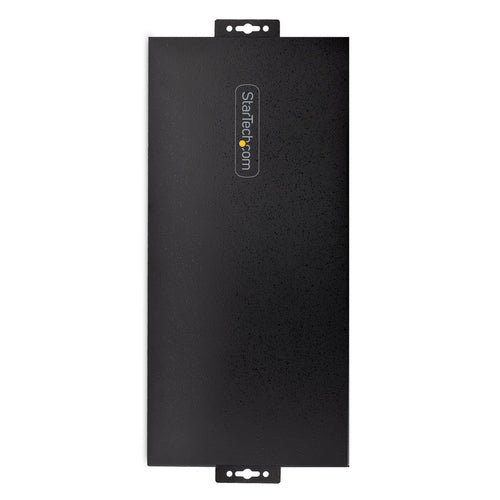

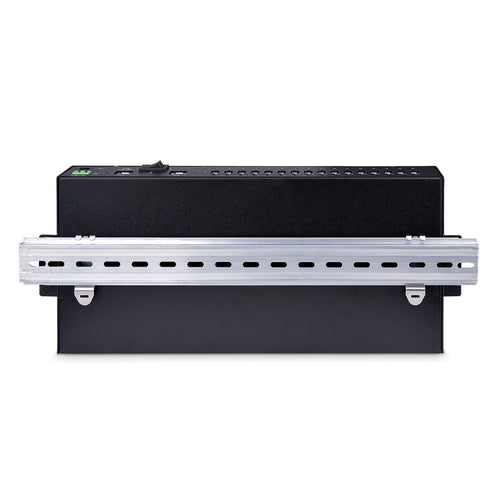

The 16-Port USB Hub offers three mounting options to accommodate a wide variety of applications, from IT to industrial. The 19" rackmount rails included with the 16-Port USB hub are compliant with EIA-310 standards, ensuring compatibility with standard racks. These rails can be used to install the USB hub into 1U of rack space for applications in data centers and server rooms. The built-in surface mount is perfect for workstations, desks, or walls, where users need quick access to the USB hub. The standard DIN-rail (Top Hat/TH) mounting hardware is best suited for industrial automation and control equipment.

Connect and Charge USB Devices

This USB Hub features two 12-24V DC power options. Power can be inputted using the 2-wire terminal block connector or the barrel connector. Both options enable support for USB Battery Charging Specification 1.2 (BC 1.2) with 120W shared across all ports. Ports are grouped in 8 pairs (1&2, 3&4, 5&6, 7&8, 9&10, 11&12, 13&14, 15&16) and each pair supports max 3.0A/15W combined (1.5A/7.5W per port), or max 2.0A/10W per port when only one of both ports is used.

Dual-Host Switch

The USB Hub can connect to two separate desktop or laptop computers, and features a dual-host switch that enables easy toggling between them. The dual-host switch provides a convenient solution for applications requiring two host devices.

Wide Device Compatibility

This USB Hub is OS independent ensuring compatibility with all operating systems, including Windows, macOS, and Linux.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. This product utilizes the USB Event Monitoring utility. Use this utility to track and log connected USB devices.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

5G16AINDS-USB-A-HUB is backed by a StarTech.com 2-year warranty and free lifetime 24/5 multi-lingual technical support.

The StarTech.com Advantage

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sale

StarTech.com 5G16AINDS-USB-A-HUB interface hub

Name: StarTech.com 5G16AINDS-USB-A-HUB interface hub
Brand: StarTech.com
SKU: 5G16AINDS-USB-A-HUB
Price: 351.99 USD
Availability: InStock

StarTech.com 16-Port Industrial USB 3.0 Hub 5Gbps, Metal, DIN/Surface/Rack Mountable, ESD Protection, Terminal Block Power, up to 120W Shared USB Charging, Dual-Host Hub/Switch, USB 3.2 Gen 1 (3.1 Gen 1) Type-B, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, 5000 Mbit/s, Black, Steel, DC

Vendor: StarTech.com

Type: Interface Hubs

$351.99 USD

$351.99 USD ~~$427.97 USD~~ 17% OFF

Available stock: 20

Free Shipping over $2000
Free Returns Within 30 days

Limited time offer

Get $20 off when you spend $1,000 or more! Learn more

Infomations

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

StarTech.com 5G16AINDS-USB-A-HUB interface hub

$351.99 USD

$351.99 USD ~~$427.97 USD~~ 17% OFF

Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	16
Ports quantity	16
Terminal block port	Yes
DC-in jack	Yes
Features
Data transfer rate	5000 Mbit/s
Product colour	Black
Housing material	Steel
LED indicators	Yes
Plug and Play	Yes
Power
Power supply type	DC
Input voltage	12 - 24 V
Power plug type	Type M
Weight & dimensions
Width	31 mm
Depth	13 mm
Height	44 mm
Weight	1.1 kg
Packaging data
Package width	130 mm
Package depth	280 mm
Package height	43 mm
Package weight	1.8 kg

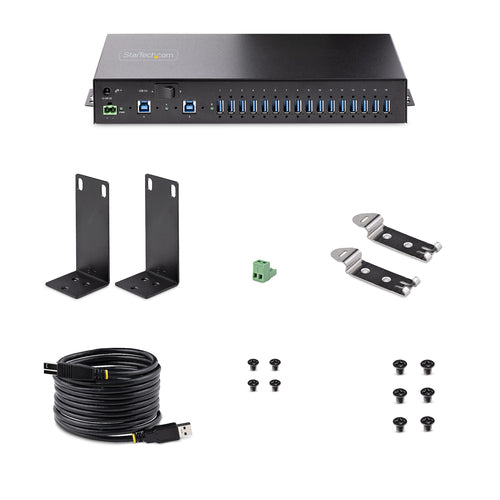

Packaging content
Cables included	USB Type-A to USB Type-B
Terminal block included	Yes
DIN rail kit included	Yes
Mounting brackets included	Yes
Quick start guide	Yes
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Performance
Mean time between failures (MTBF)	122383.8 h
Logistics data
Master (outer) case width	515 mm
Master (outer) case length	390 mm
Master (outer) case height	313 mm
Products per master (outer) case	5 pc(s)
Other features
Rack mounting	Yes
Form factor	1U
Chipset	Genesys Logic - GL3523
