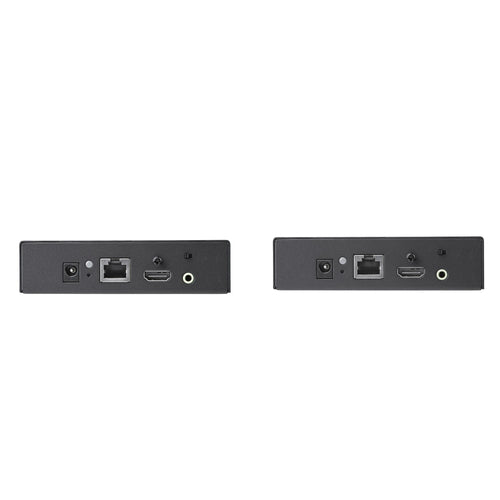

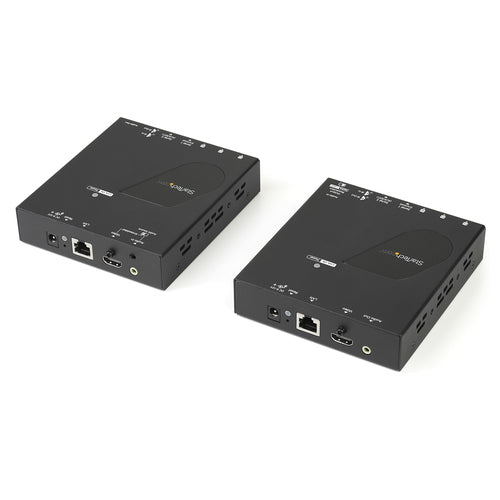

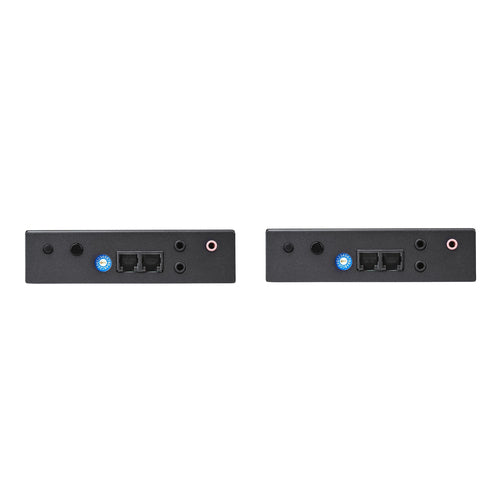

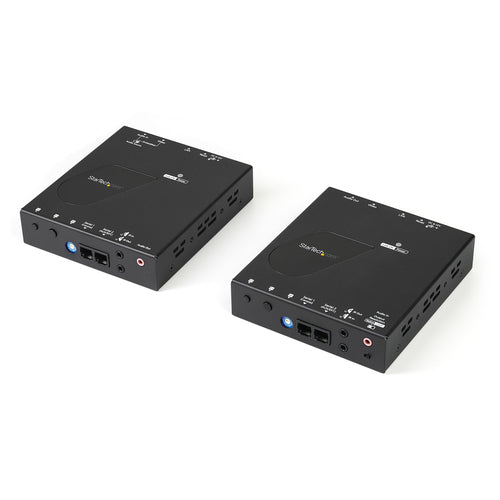

StarTech.com ST12MHDLAN4K AV extender
StarTech.com ST12MHDLAN4K AV extender
Available stock: 6
Couldn't load pickup availability
Get $20 off when you spend $1,000 or more! Learn more
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 100 m |
| Maximum refresh rate | 30 Hz |
| Audio system | stereo |
| LED indicators | Link, Power, Reset |
| Supported video modes | 720p, 1080p, 2160p |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Material | Aluminium |
| Rack mounting | Yes |

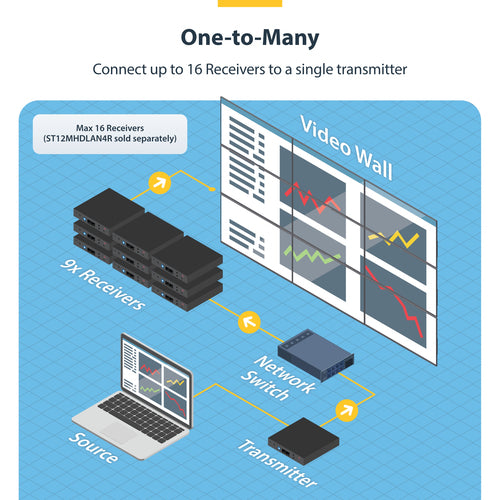

| Daisy chain | Yes |
| Product colour | Black |

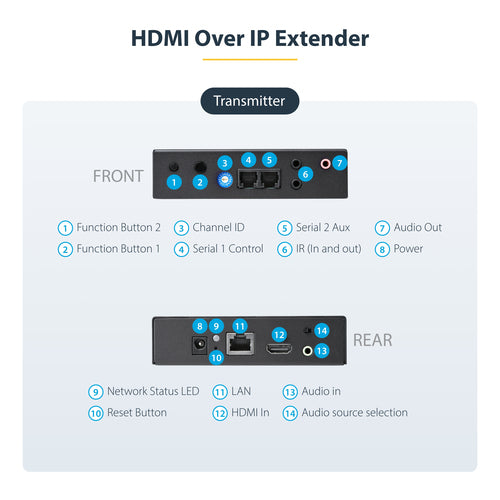

| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Audio input | 2 x 3.5mm |
| Audio output | 2 x 3.5mm |
| RJ-11 ports quantity | 4 |
| Remote (IR) input | 2 |
| Remote (IR) output | 2 |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 0.6 A |
| Operating voltage (transmitter) | 12 V |
| Output current | 1.5 A |
| Operating voltage (receiver) | 12 V |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 117 x 130 x 30 mm |
| Receiver weight | 592 g |
| Transmitter dimensions (WxDxH) | 117 x 130 x 30 mm |
| Transmitter weight | 592 g |
| Packaging data | |
| Package width | 235 mm |
| Package depth | 370 mm |
| Package height | 76 mm |
| Package weight | 2.3 kg |

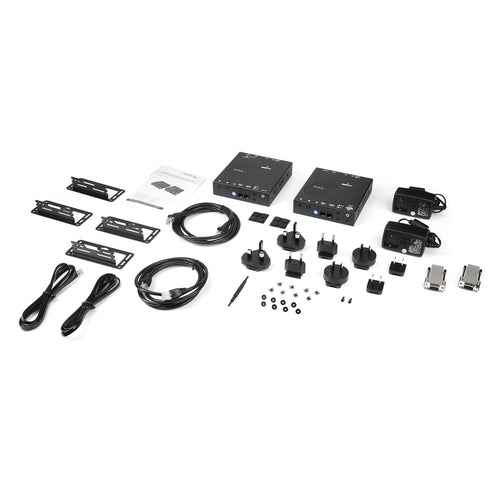

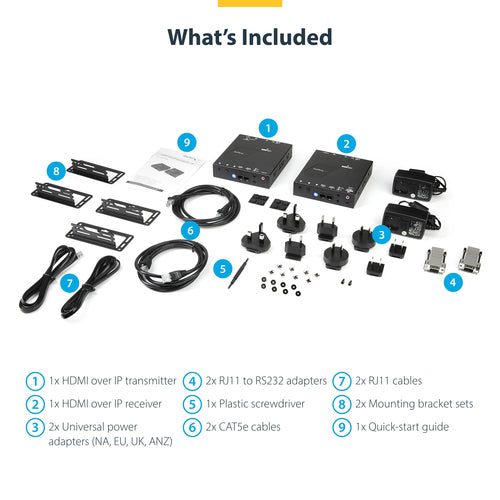

| Packaging content | |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| Included power plug types | ANZ, EU, NA, UK |
| Quick start guide | Yes |
| Mounting brackets included | Yes |
| Technical details | |
| Audio support | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 390 mm |
| Master (outer) case length | 495 mm |
| Master (outer) case height | 265 mm |
| Products per master (outer) case | 6 pc(s) |
