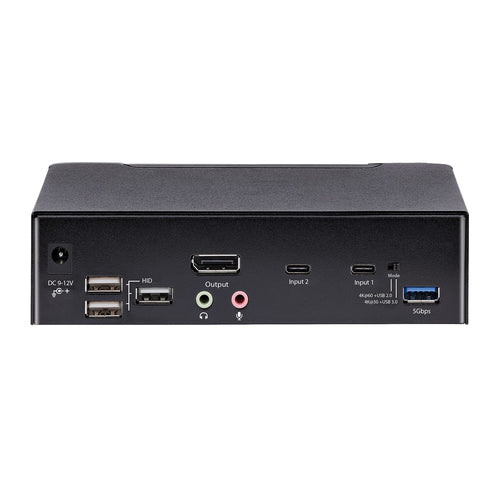

StarTech.com SV231DPUCA KVM switch
StarTech.com SV231DPUCA KVM switch
Available stock: 8
Couldn't load pickup availability
Get $20 off when you spend $1,000 or more! Learn more
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPort version | 1.2 |

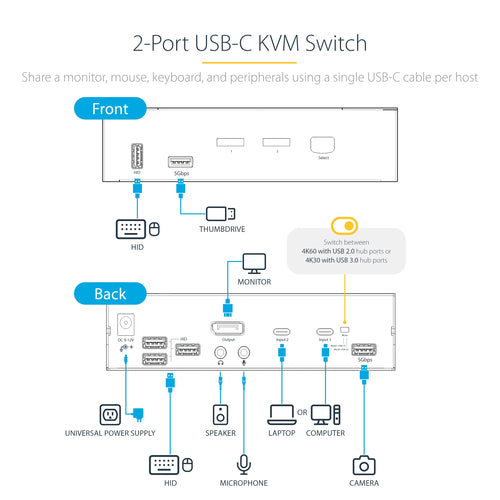

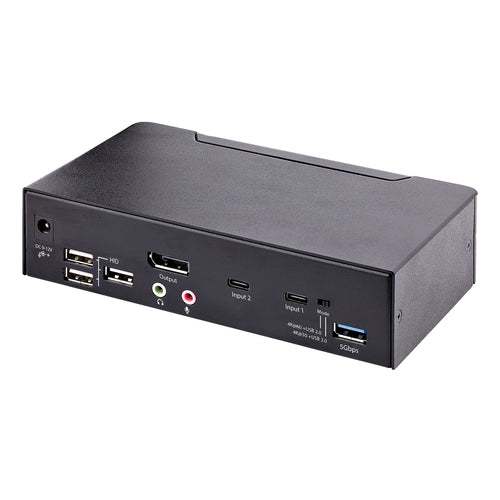

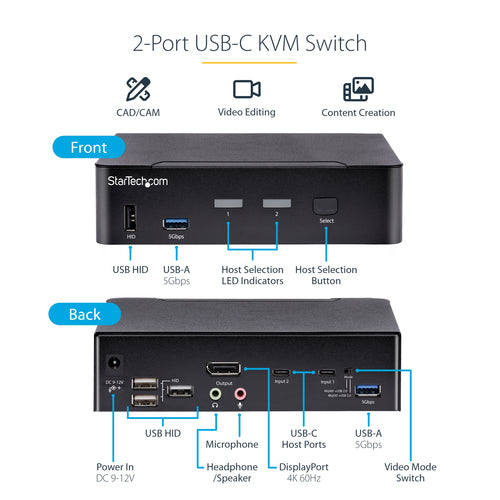

| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort |
| Console USB ports quantity | 6 |
| Console DisplayPorts ports quantity | 1 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 5120 x 1440 pixels |
| Video bandwidth | 60 Hz |
| Data transfer rate (max) | 5 Gbit/s |
| Scan interval | 3,8,15,30 s |
| HDCP | Yes |
| Chipset | Parade - PS8461, Etron - EJ899I |
| Audio channels | 2.0 |
| Number of displays supported | 1 |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 158000 h |
| Display | |
| Built-in display | No |
| Power | |
| Power source | AC |
| Input voltage | 100 - 240 V |
| Input current | 1.2 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power plug type | Type M |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |

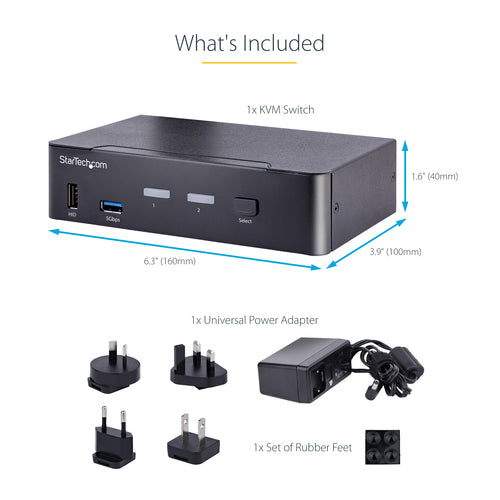

| Width | 140 mm |
| Depth | 160 mm |
| Height | 40 mm |
| Weight | 600 g |
| Packaging data | |
| Package width | 184 mm |
| Package depth | 238 mm |
| Package height | 89 mm |
| Package weight | 1 kg |
| Packaging content | |
| Quick installation guide | Yes |

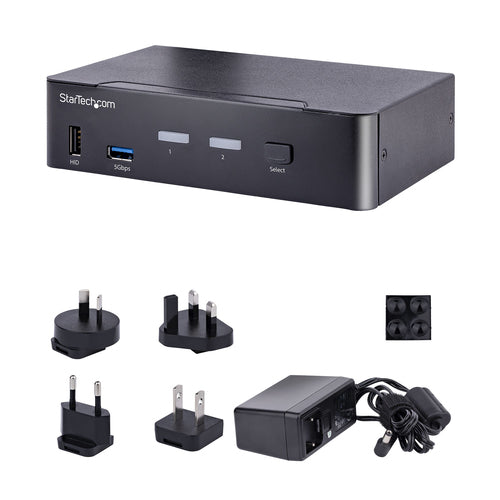

| AC adapter included | Yes |
| Rubber feet | Yes |
| Other features | |
| IP control | No |
| Logistics data | |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 397 mm |
| Master (outer) case height | 257 mm |
| Products per master (outer) case | 6 pc(s) |
