Features

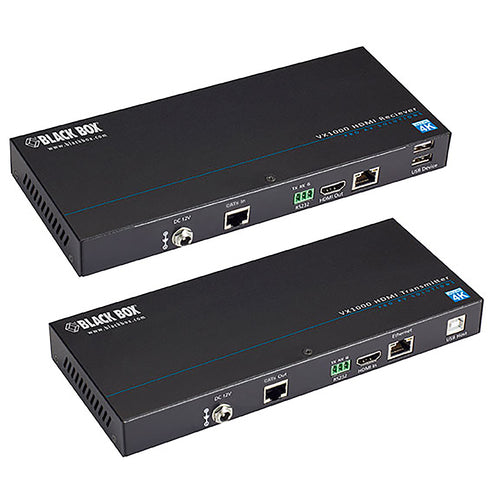

Type AV transmitter & receiver
Maximum resolution 3840 x 2160 pixels
Cable types supported Cat5e, Cat6a, Cat7
Maximum refresh rate 60 Hz
Audio system stereo
HDCP pass-through Yes
RS-232 pass-through Yes
CEC pass-through No
Electrostatic Discharge (ESD) protection 8 kV
Supported video modes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Bandwidth 297 MHz
Audio formats supported LPCM
HDCP Yes
HDCP & EDID bypass Yes
Plug and Play Yes
HDCP version 2.2
Product colour Black
HDBaseT certified No
Certification CE, FCC, RoHS

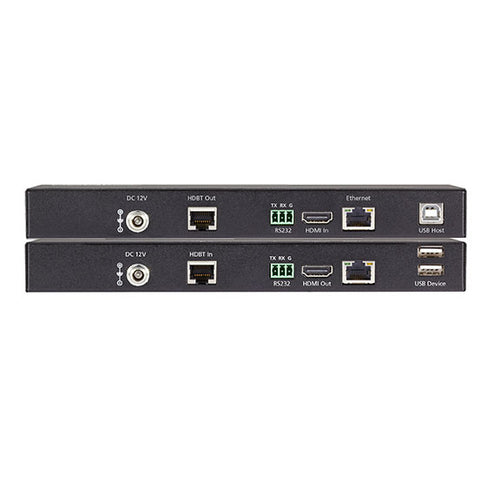

Ports & interfaces
Connectivity technology Wired
Bluetooth No
RJ-45 input ports 1
RJ-45 output ports 1
HDBaseT port No
HDMI in 1
Number of HDMI outputs 1
HDMI version 1.4
USB ports quantity 3
USB connector type USB Type-A, USB Type-B
DC-in jack Yes
Power
Operating voltage 12 V
Input current 1.5 A
Power consumption (typical) 18 W
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Dimensions (WxDxH) 220 x 93.2 x 25 mm
Width 220 mm
Depth 932 mm
Height 25 mm
Weight 500 g
Technical details
Compliance certificates RoHS
