Features
UPS topology Double-conversion (Online)
Output power capacity 6 kVA
Output power 5400 W
Waveform Sine
Input operation voltage (min) 200 V
Input operation voltage (max) 240 V
Output operation voltage (min) 200 V
Output operation voltage (max) 240 V
Output frequency 50/60 Hz
Output voltage regulation +/- 1%
Surge energy rating 390 J
Heat dissipation 1895 BTU/h
Number of input phases 1
Efficiency 93%
Power factor 0.99
Crest factor 3:1
EMI/RFI noise filtering Yes
Noise level 45 dB
Surge protection Yes
Ports & interfaces
AC outlet types NEMA L6-20R, NEMA L6-30R
Power plug NEMA L6-30P
AC outlets quantity 4 AC outlet(s)
USB port Yes
USB 2.0 ports quantity 2
USB port type USB Type-A/USB Type-B
Ethernet LAN (RJ-45) ports 1
Battery
Battery technology Sealed Lead Acid (VRLA)
Typical backup time at full load 8 min
Typical backup time at half load 3 min
Design

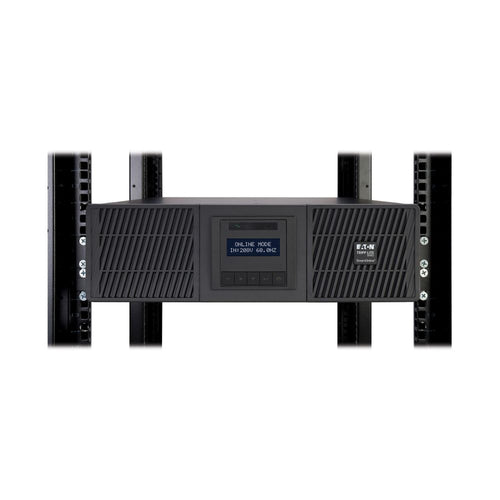

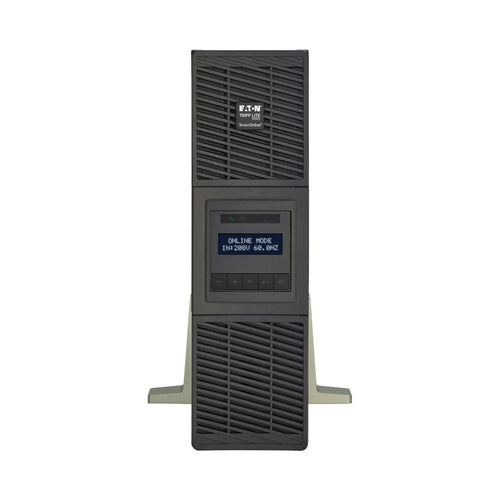

Form factor Rackmount/Tower
Rack capacity 3U
Cable length 3 m
Product colour Black
Display type LCD
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -25 - 55 °C
Operating relative humidity (H-H) 0 - 95%
Operating altitude 0 - 3000 m
Certificates
Compliance certificates Federal Communications Commission (FCC), CE, RoHS, REACH, Norma Oficial Mexicana (NOM), CSA, UL, cTUVus

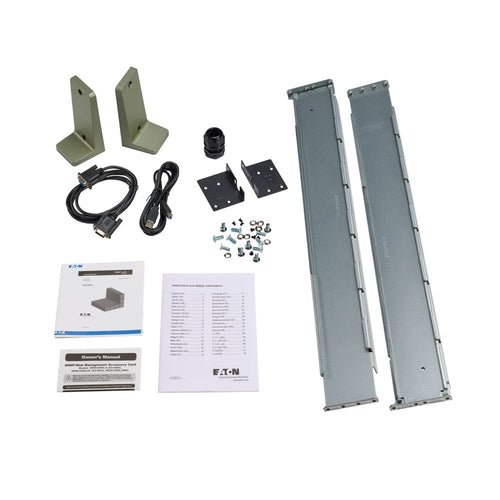

Packaging content
Rack mount kit Yes
Cables included RS-232, USB cable
Manual Yes
Sustainability
Sustainability certificates ENERGY STAR
Weight & dimensions
Width 439.4 mm
Depth 863.6 mm
Height 129.5 mm
Weight 50.6 kg
