Management features
Switch type Managed
Switch layer L2+/L3
Web-based management Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 48
10G Ethernet (copper) ports quantity 4
Installed SFP modules quantity 4
SFP module slots quantity 4
USB Type-A ports quantity 1
USB Type-C ports quantity 1
Number of management ports 3 pc(s)
Fiber ports quantity 4
Fiber optic connector SFP
Console port USB Type-B
Network
10G support Yes
Optical fiber
Switching optical modules type Gigabit Ethernet
Data transmission
Switching capacity 496 Gbit/s
Throughput 369 Mpps
Forwarding rate 369 Mpps
Latency (1 Gbps) 2.28 µs
Latency (10 Gbps) 1.46 µs
Design
Rack mounting Yes
Stackable Yes
Form factor 1U
Product colour Black
Market segment Business
Performance
Physical stacking (units) 10
Built-in processor Yes
Processor manufacturer ARM
Processor model ARM Cortex-A9
Processor frequency 1800 MHz
Memory type DDR4-SDRAM
Internal memory 8000 MB
Flash memory 32000 MB
Minimum system requirements DLF-power switches; single-phase AC; 100V-240V or 110V-240V or 110V-120V/208V-240V
Power
Power source AC/PoE
Power supply included No
Number of power supply units 2
AC input voltage 100 - 240 V
Input voltage 110 - 120/208 - 240 V
Power consumption (max) 96 W
Power consumption note With JL086A PSU: Idle: 70W 100% Traffic Rate: 90W With JL087A PSU: Idle: 71W 100% Traffic Rate: 88W With JL670A PSU: Idle: 73W 100% Traffic Rate: 96W
Power supply note 2 field‐replaceable, hot‐swappable power supply slots 1 minimum power supply required (ordered separately). Supported PSUs JL086A, JL087A and JL670A.
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) modes 4PPoE
Power over Ethernet (PoE) ports quantity 48
Power over Ethernet plus (PoE+) ports quantity 48
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 1440 W
Other features
Latency 1 Gbps: 2.28 μs 10 Gbps: 1.46 μs 25 Gbps: 1.90 μs 50 Gbps: 3.49 μs
Memory and processor CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration

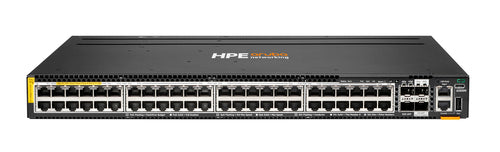

I/O ports 48x 10/100/1000 BaseT PoE+ ports supporting up to 30W per port 4x 1G/10G/25G/50G [4] SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1x USB-C console port 1x USB Type-A host port 1x OOBM port [4] 450G capability is for use with 50G DACs for both interconnect and VSF stacking. 50G transceivers and DACs are not supported on S0E91A and S0X44A switch models, which require QSFP to SFP56 DAC cable for VSF stacking with other CX 6300F and CX 6300M switch models only. VSF stacking not supported on 1G ports.
Performance management Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Weight (imperial) 6.02 kg (13.3 lbs)

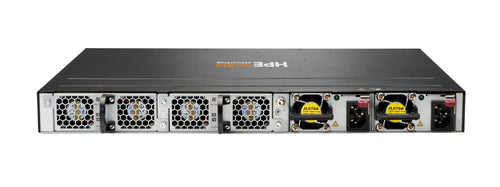

Fan Switch has two fan tray slots and comes with one fan tray installed. Minimum one fan tray required. Fan trays are field replaceable and hot‐swappable. Each fan tray contains two fans.
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Operating altitude 0 - 1524 m
Non-operating altitude 1524 - 3048 m
Weight & dimensions
Width 44 mm
Depth 442 mm
Height 4.4 mm
Weight 6.02 kg
Packaging data
Package width 440 mm
Package depth 385 mm
Package height 44.2 mm
Technical details
Safety warning Derate -1°C for every 1000 ft from 5000 ft to 10000 ft.
Certificates
Certification TAA certified
