Management features
Switch type Managed
Switch layer L2/L2+
Quality of Service (QoS) support Yes
Web-based management Yes
Cloud-managed Yes
Traffic classification Yes
Traffic shaping Yes
ARP inspection Yes
System event log Yes
MIB support RFC 1213 MIB-II, RFC 1493 Bridge MIB, RFC 1643 Ethernet MIB, RFC 2863 Interfaces MIB, RFC 2618 RMON MIB
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity 24
Installed SFP+ modules quantity 4
SFP+ module slots quantity 4
Number of management ports 1 pc(s)
Fiber ports quantity 4
Fiber optic connector SFP+
Power cables quantity 1
Power connector AC-in jack
Network
Networking standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x
10G support Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T, 2.5GBASE-T
Cable types supported Cat5e, Cat6, Cat6a
Port mirroring Yes
Full duplex Yes
IP routing Yes
Routing entries 32
Flow control support Yes
Link aggregation Yes
Broadcast storm control Yes
Rate limiting Yes
Auto MDI/MDI-X Yes
Spanning tree protocol Yes
Ethernet LAN data rates 10,100,1000,2500,10000 Mbit/s
Auto-sensing Yes
Auto-negotiation Yes
Active link detection Yes
Cable length detection Yes
MAC address auto-learning supported Yes
MAC address auto-aging supported Yes
IPv4 routes 32
IPv6 routes 32
VLAN support Yes
Virtual LAN features Port-based VLAN, Voice VLAN
Number of VLANs 256
Data transmission
Switching capacity 240 Gbit/s
Throughput 178.56 Mpps
Throughput 240 Gbit/s
Forwarding rate 178.56 Mpps
MAC address table 32000 entries
Store-and-forward Yes
Latency (10-100 Mbps) 3.8 µs
Latency (1 Gbps) 2.6 µs
Latency (10 Gbps) 1.4 µs
Number of trunks 8
Number of queues 8
Static route Yes
Number of static routes 32
Number of IP interfaces 32
Jumbo frames support Yes
Jumbo frames 12000
Packet forwarding rate (1 Gbps) 1488000 pps
Packet forwarding rate (100 Mbps) 148800 pps
Packet forwarding rate (10 Mbps) 14880 pps
Packet buffer memory 2 MB
Security
DHCP features DHCP snooping
Access Control List (ACL) Yes
Access Control List (ACL) rules 1000
Access Control List (ACL) IPv4 entries 100
Access Control List (ACL) IPv6 entries 100
IGMP snooping Yes
IGMP entries 512
Security algorithms 802.1x RADIUS, TACACS+, HTTPS, SNMPv3
MAC address filtering Yes
Static port security Yes
SSH/SSL support Yes
Loop protection Yes
BPDU filtering/protection Yes
IP-MAC-Port binding Yes
Password protection Yes
Authentication type RADIUS, IEEE 802.1x
Queue scheduling algorithms Weighted Round Robin (WRR), Strict Priority Queue (SPQ)
Multicast features
Multicast support Yes
Multicast MAC address table 512 entries
IPv4 multicast entries 512
IPv6 multicast entries 512
Number of multicast groups filtered 512
MLD entries 512
Protocols
Management protocols SNMP v1/v2c/v3, RMON, HTTP, HTTPS
Switching protocols STP, RSTP, MSTP, LACP, LLDP
Supported network protocols IPv4, IPv6
IPv4 FIB entries 32
IPv6 FIB entries 32
IP Source Guard (IPSG) Yes
Design

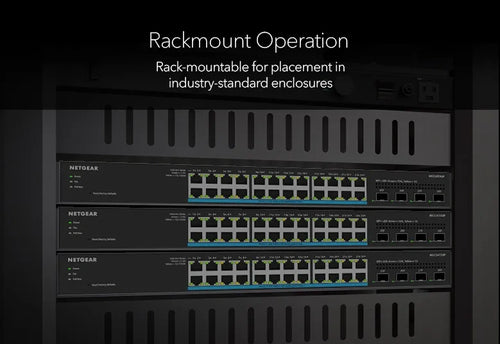

Rack mounting Yes
Stackable No
Form factor 1U
Product colour Black
Housing material Metal
Reset button Yes
LED indicators Yes
International Protection (IP) code IP20
Airflow direction Side-to-side airflow
Market segment Business
Version MS324TXUP
Electromagnetic compatibility CE, FCC Part 15 Class A, ICES-003 Class A, VCCI Class A, RCM, KC
Performance
Built-in processor Yes
Memory type DDR3-SDRAM
Internal memory 512 MB
Flash memory 256 MB
Noise level 38 dB
Firmware upgradeable Yes
Mean time between failures (MTBF) 1017939 h
Minimum system requirements Web browser (Chrome, Edge, Firefox, Safari) or NETGEAR Insight app/cloud account
Power
Power source AC
Power supply included Yes
Number of power supply units 1
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Input current 10 A
Input voltage 100-240 V
Power consumption (typical) 720 W
Power consumption (max) 765 W
Power saving mode (EEE) Yes
Power protection features Overload
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) type supported PoE+, PoE++ (4PPoE), Active PoE
Power over Ethernet (PoE) ports quantity 24
Power over Ethernet plus (PoE+) ports quantity 24
Power over Ethernet (PoE) voltage 54 V
Power over Ethernet (PoE) power per port 60 W
Total Power over Ethernet (PoE) budget 720 W
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 0 - 90%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 4500 m
Heat dissipation 2610 BTU/h
Weight & dimensions
Width 440 mm
Depth 310 mm
Height 43.2 mm
Weight 4.43 kg
Packaging content
Cables included AC
Quick start guide Yes
User guide Yes
Manual Yes
Rack mount kit Yes
Packaging data
Package type Box
